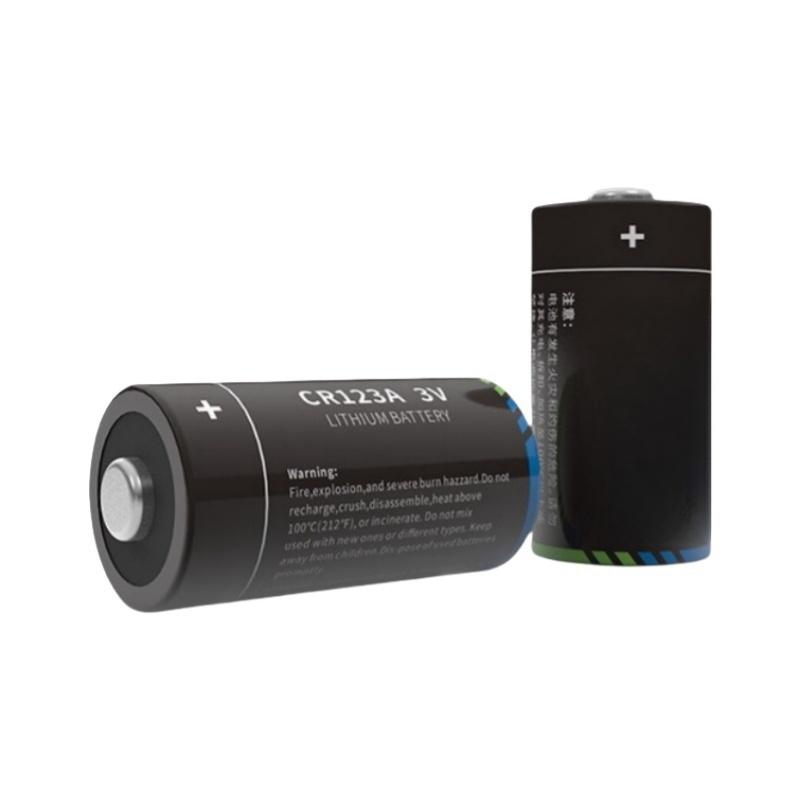

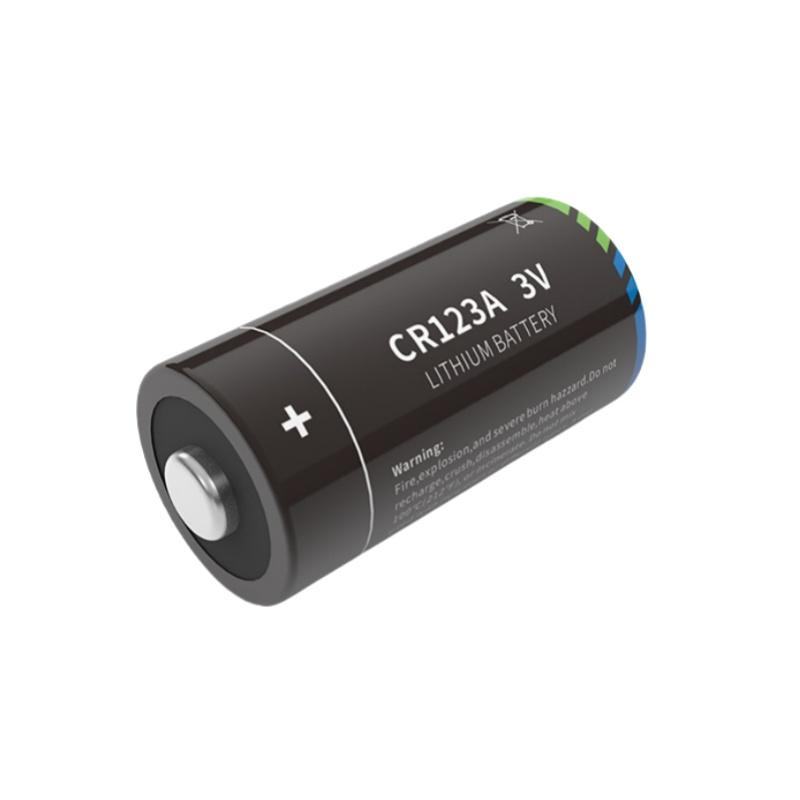

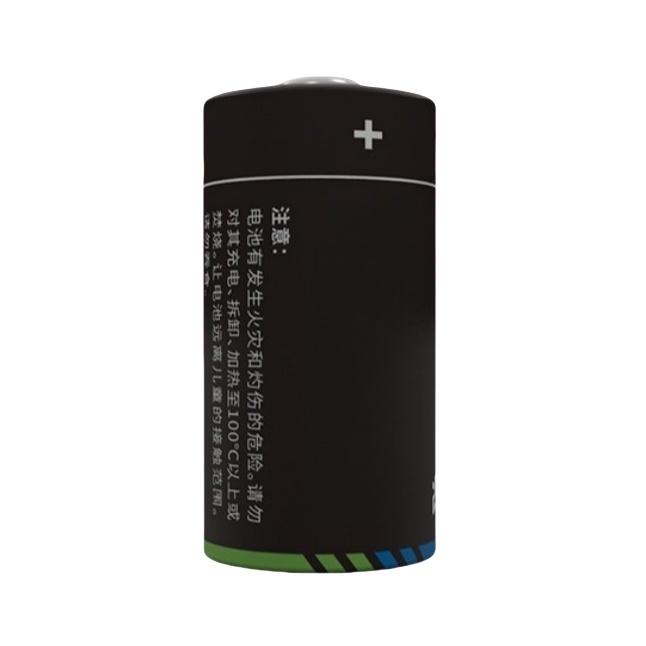

3.0V CR123A 1300/1600mAh Cylindrical LiMnO2 Battery

A type of battery with lithium as the negative electrode and manganese dioxide as the positive electrode. LiMnO2 battery low rate and medium rate discharge performance is good, cheap, and good safety performance, the battery shape can be designed and produced into coin shape, cylindrical shape and square, to meet the requirements of different sizes and current electrical appliances. Compared with other lithium batteries, its material and manufacturing costs are relatively low, and the safety is very good.

Features:

The voltage is about 3.0V

1. High energy density, equivalent to 5 times alkaline and 10 times carbon-zinc 9V batteries

2.10 years of storage

3. High voltage and horizontal discharge

4. Annual capacity attenuation is less than 2%

5. Super good over-current safety protection performance

6. Wider temperature application range

Specifications

LiMnO2 Cylindrical LiMnO2 Battery

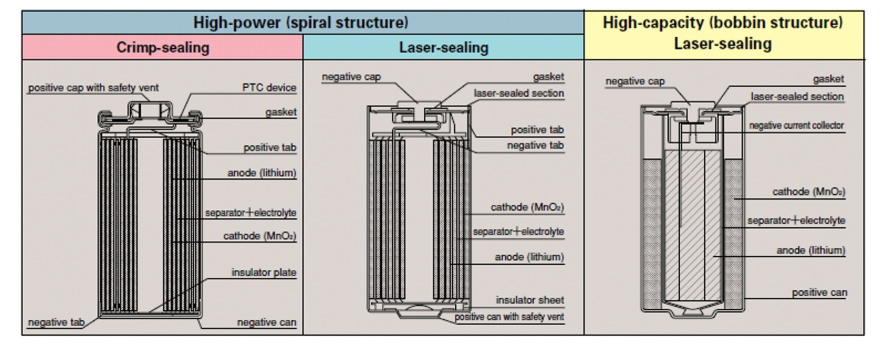

Structure:Winding inner core, semi-sealed，Rate cell (can provide high current discharge)

Safety: High safety, explosion-proof assembly cap, PTC overcurrent protection

Life: annual self-discharge rate<2%, storage="" life="">10 years

Temperature range: The operating temperature range can reach -40℃~70℃

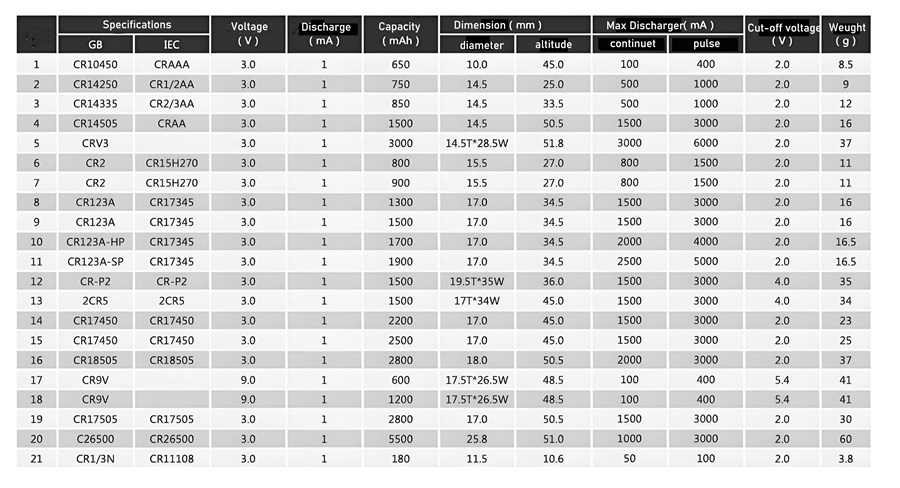

Cylindrical LiMnO2 Battery Main Model

※ Different from 3V LiMnO2 batteries, the 9V series are prismatic batteries

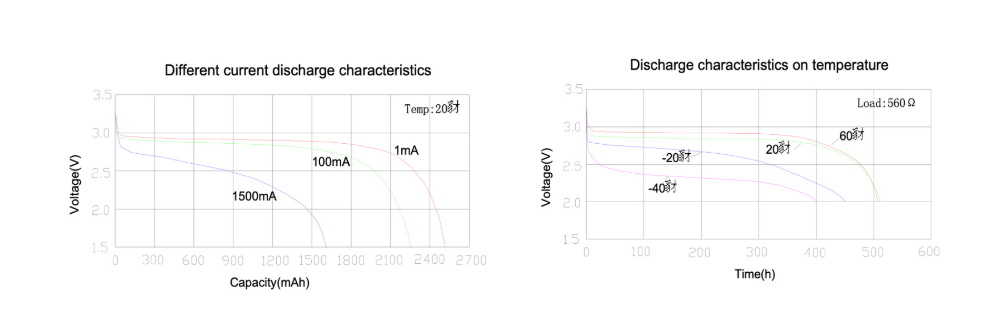

Discharge performance of LiMnO2 Battery

Discharge curves of different currents at 20C and 560Q constant resistance discharge curve at different temperatures

Applications

Wide application range, suitable for high voltage lag requirements, can be discharged at a moment with a large current equipment. In the commercial (including home) field, it is mainly used as the power supply for automatic cameras, electronic calculators, radios, torches, electric toys, watches, etc. In the industrial field, it is mainly used as Marine lifesaving equipment, water/electrical charge rate smart meter, positioning transmitter power supply and instrument memory equipment power supply. In the field of military equipment, it is mainly used as a power supply for communication radios, security machine, night vision, small jammers, mine, mine, etc.
