Deye 4KW To 110KW with 230/400Vac Three Phase String Inverter

Contact Now

Product Details:

Place of Origin:	China
Brand Name:	Deye
Certification:	CE
Model Number:	/

Payment & Shipping Terms:

Retail Price:	/
Wholesale Price:	Negotiable
Packaging Details:	cartons or plywoods
Payment Terms:	T/T

Contact Now

Nominal Capacity:	/	Nominal Voltage:	/
Internal Impedence:	/	Operating Votage:	/
Dimension:	/	Battery Weight:	/

Product Description

Deye Three Phase String Inverter

Deye inverter three-phase on-grid inverter power range is from 4KW to 110KW with 230/400Vac. So, it can connect to utility grid(230/400V) directly without transformer. All the inverters are equipped with LCD display and buttons, easy operation and maintenance specially for remote and poor areas.

For the SUN-110K-G03, it has 6 MPP trackers and 24 pairs of strings. The Max. DC input power is up to 150kW. So, it can save equipment investment via connecting more PV modules. Solution and service by leading 3 phase string inverter manufacturer.

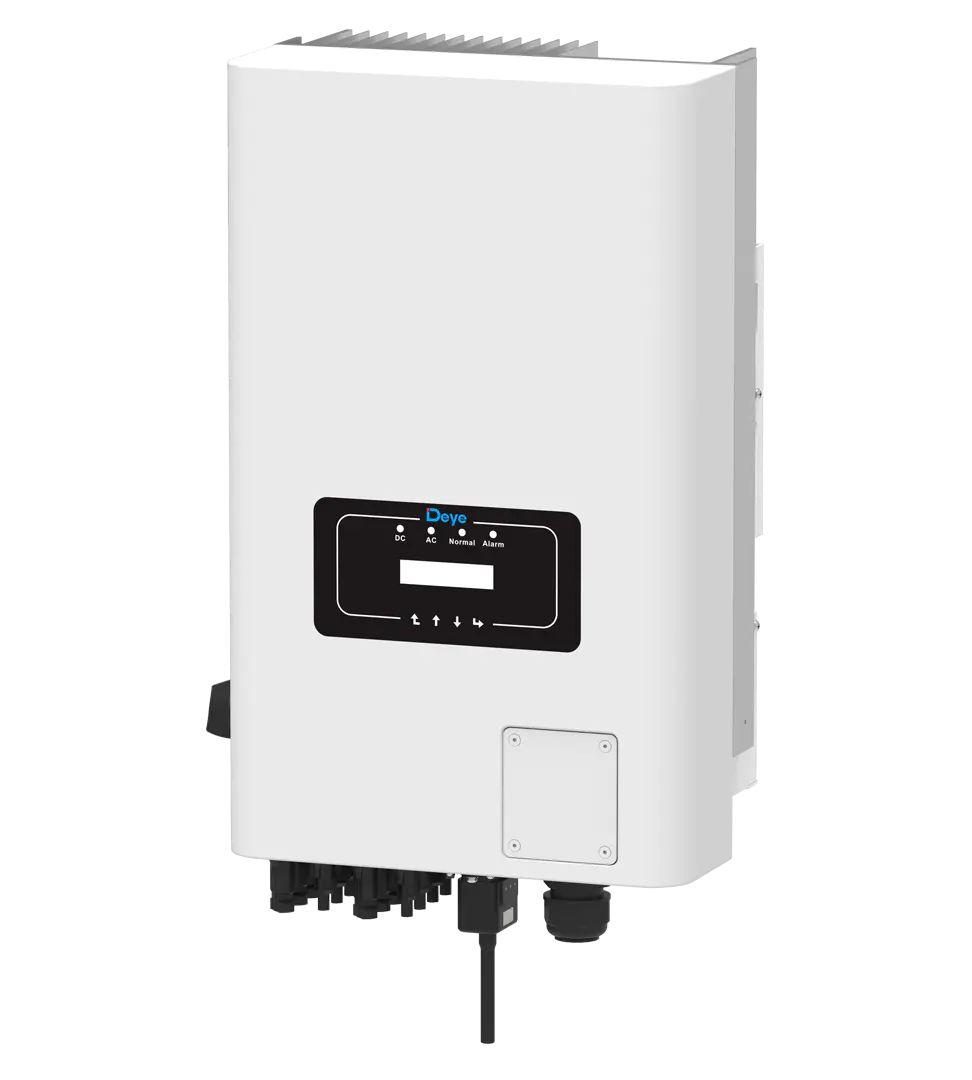

Deye SUN-4/5/6/7/8/10/12/15K-G06P3-EU-AM2

Higher yields / Safe & Reliable / Smart / User-friendly

This series inverter is specially designed for three-phase PV systems, covering a wide power range of 4kW, 5kW, 6kW, 7kW, 8kW, 10kW, 12kW. With compactness design, it is easy to install and operate. It supports wide AC output voltage to ensure longer working hour.

Features:

2 MPP tracker, Max. efficiency up to 98.5%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)

Parameters:

Deye SUN-15/17K-G05 | 15-17kW | Three Phase | 2 MPPT

Higher yields / Safe & Reliable / Smart / User-friendly

The series products adopt 2 MPP trackers design. Equipped with screw crimp terminal for DC and AC side, convenient installation and maintenance. With high detection accuracy, when the load power is less than 2%, the measurement accuracy is still high. In addition, it allows the system to be monitored and controlled remotely.

Features:

2 MPP tracker, Max. efficiency up to 98.5%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)

Parameters:

Deye SUN-18/20/25K-G04 | 18-25kW | Three Phase | 2 MPPT

Higher yields / Safe & Reliable / Smart / User-friendly

This new series of three-phase output inverter has wider range of 18kw, 20kw, 25kw than the original series, at the same time still got two integrated MPPTs, allowing two-array to input from different roof orientations. In addition, it allows the system to be monitored and controlled remotely.

Parameters:

2 MPP tracker, Max. efficiency up to 98.6%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)

Parameters:

Deye SUN-30/33/35/36K-G04 | 30-36kW | Three Phase | 2 MPPT

Higher yields / Safe & Reliable / Smart / User-friendly

This new series of three-phase output inverter has wider range of 30kw, 33kw, 36kw than the original series, at the same time still got two integrated MPPTs, allowing two-array to input from different roof orientations. In addition, it allows the system to be monitored and controlled remotely.

Features:

2 MPP tracker, Max. efficiency up to 98.6%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)

Parameters:

Deye SUN-60/70/75/80K-G | 60-80kW | Three Phase | 4 MPPT

Higher yields / Safe & Reliable / Smart / User-friendly

The Deye 60-80K grid-connected inverter is suited for medium and large-scale commercial rooftops and ground-mounted solar PV system in which reliability and stability are important. the full series inverter has 30% DC input oversizing ratio and 10% AC output overloading ratio, offering a faster return on investment.

Features:

4 MPP tracker, Max. efficiency up to 98.7%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Type II DC/AC SPD
Anti-PID function (Optional)
AFCI function (optional)

Parameters:

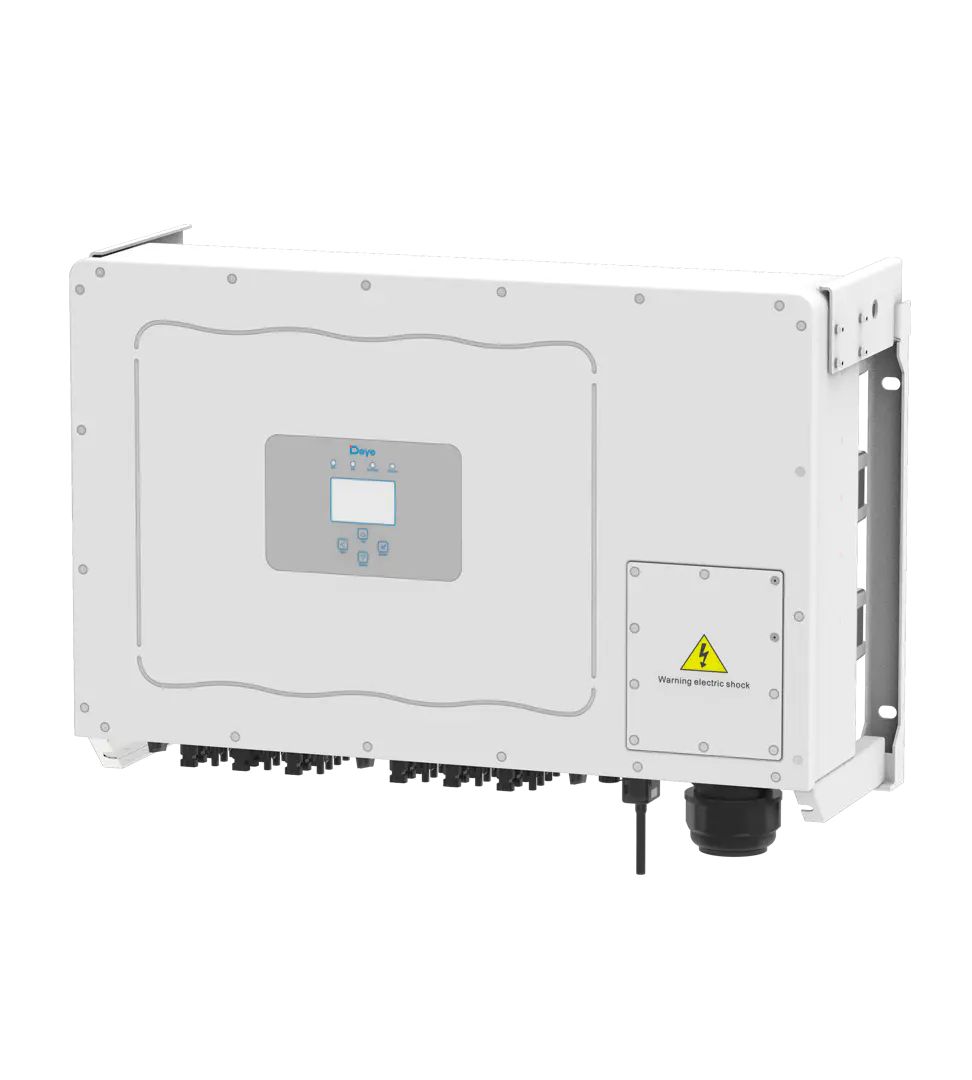

Deye SUN70/75/80/90/100/110K-G03 | 70-110kW | Three Phase | 6 MPPT

Higher yields / Safe & Reliable / Smart / User-friendly

The Deye 70-110K grid-connected inverter is suited for medium and large-scale commercial rooftops and ground-mounted solar PV system in which reliability and stability are important. the full series inverter has 30% DC input oversizing ratio and 10% AC output overloading ratio, offering a faster return on investment.
