Product Details:
|
| Nominal Capacity: | 280Ah | Nominal Voltage: | 720Ah |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | / |
| Dimension: | W1170*D655*H2240mm | Battery Weight: | Around 1800kg |

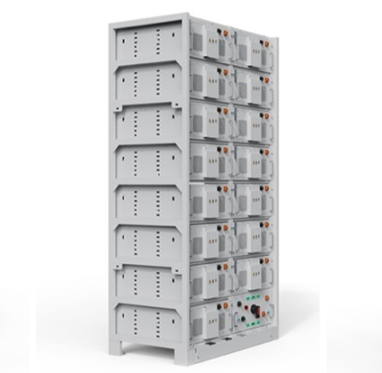

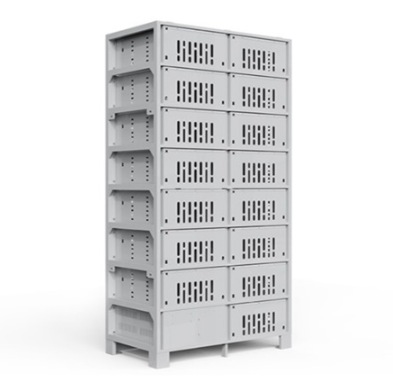

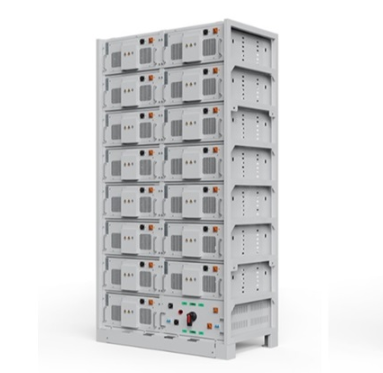

This is Air-cooling 720V 280Ah Energy Storage System.
Modular design, good compatibility, flexible configurations of system capacity.
PACK+BMU
Functions: temperature acquisition, voltage acquisition, battery balancing
Current Combiner cabinet+ BAMS
Functions: DC confluence, acquisition, stor-age, processing, battery information dis-play, communication with PCS and EMS
BMS
Monitor, view and set PCS, battery system, air conditioner, fire hydrant and other operation data and fault data, record system charging and discharging data, process data, and generate reports
Parameters:
Items | Parameters |
Model | BR-15-720/280-F |
Cooling mode | Air cooling |
Battery packing mode | 1P225S |
Nominal voltage | 720V |
Nominal capacity | 280Ah |
Voltage range | 630V~810V |
Standard Charging Current | 140A |
Standard Discharging Current | 140A |
IP level | IP20 |
Operating temperature | Charging: 0℃~55℃ Discharging: -20℃~55℃ |
Recommended service temperature | 20℃~30℃ |
Dimensions | W1170*D655*H2240mm |
Weight | Around 1800kg |
Application:
It provides energy storage solutions with high security and high cost-effectivenessunder the comprehensive scenario of power generation side, grid side and user side.
