Product Details:
|
| Nominal Capacity: | 100Ah | Nominal Voltage: | 48V/51.2V |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | / |
| Dimension: | 460*170*740mm | Battery Weight: | 50kg |

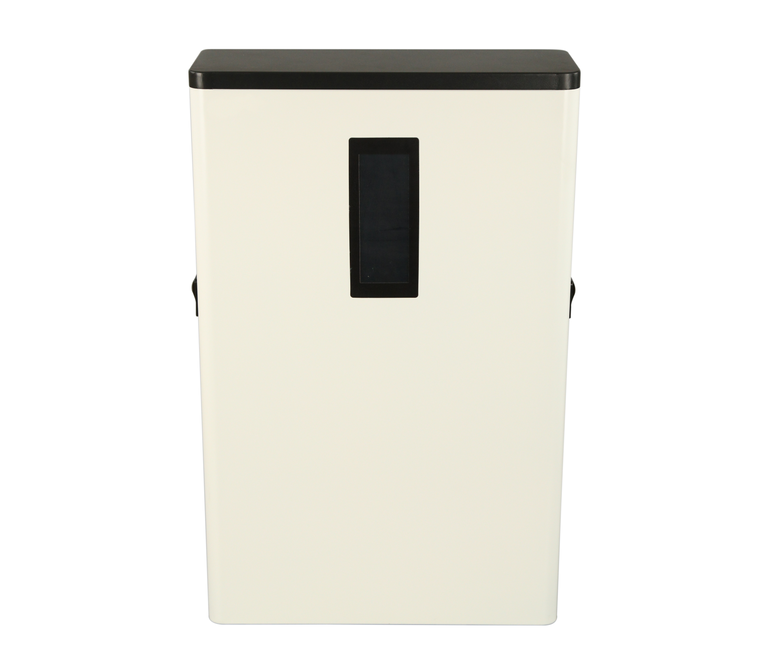

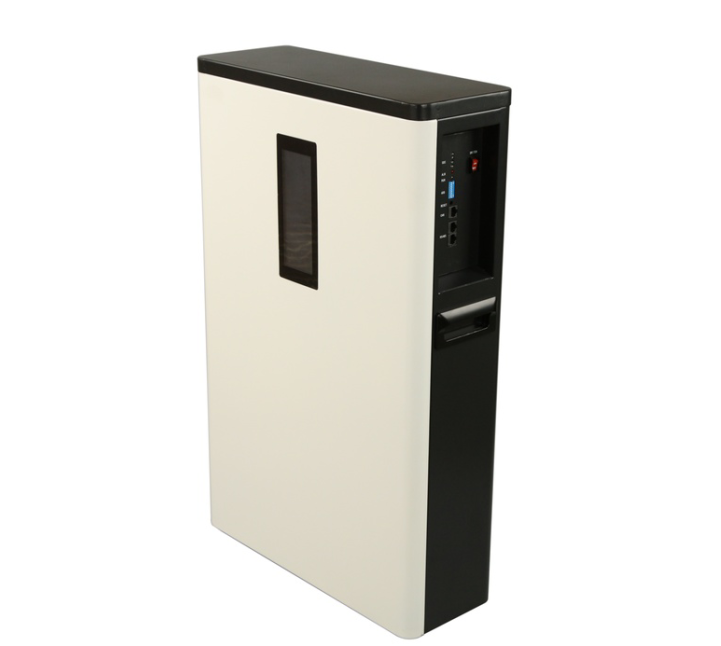

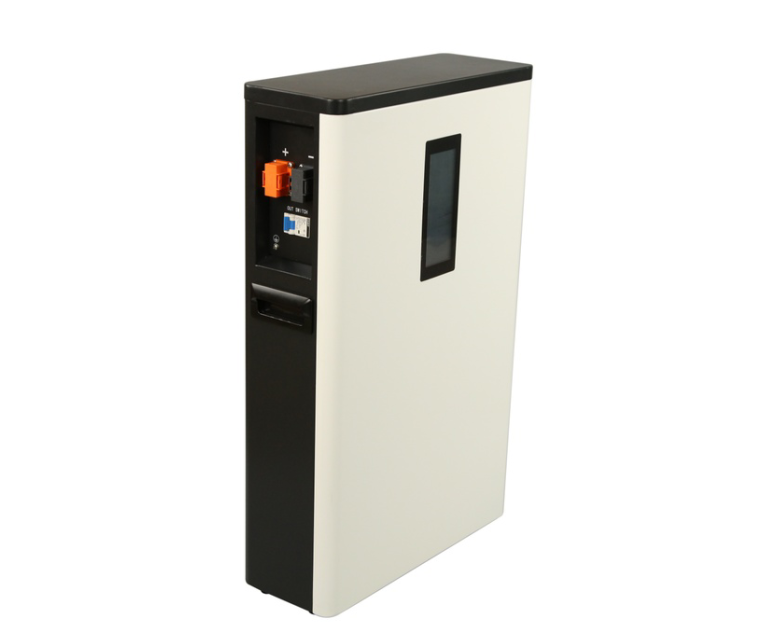

The 51.2V 100Ah lifepo4 battery energy storage system is the safe and reliable battery pack solution.
It includes 16 LiFePO4 battery cells and BMS. Capacity can be increased by parallel connection. Support ground mounted and wall mounted installation way.

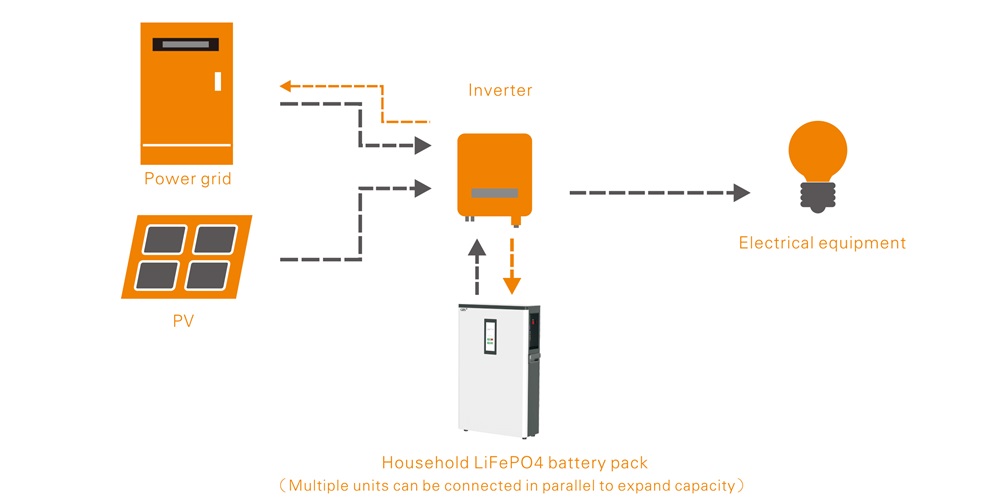

Charge: grid or solar energy. Discharge: grid or solar energy
Features：
Safe and reliable
Sufficient SOC
Environmentally friendly
Easy to use
Parameters:
Pack voltage and capacity | 51.2V 100Ah |
Storage energy | 5.12KWh |
Working voltage | 46.4〜57.6V |
Working current | ≤100A |
Inverter power | ≤5KW |
Weight | 50Kg |
Dimension(WxDxH) | 460*170*740mm |
Self discharge@25°C | <5% after 90-day storage |
Storage tempt | -20%〜45%： |
Working tempt | charge： 0℃〜65℃ discharge： -20℃〜65℃ |
Relative humidity | 5% 〜95% |
Installation | Wall-mounted type, ground type |
Cell parameter | |
Model | LFP100Ah |
Cell voltage and capacity | 3.2V 100Ah |
Cell type | LiFePO4 |
Connection way | 16S1P |
Tips: It can match almost all of the inverters in the market. Matchable inverter manufacturers include but are not limited to the following:Deye, Guriwat, Goodway, Victron, Shouhang, Maghren, PYLON, Sol Arkx and so on.
