100KW/215KWh All-in-One Outdoor Lithium Inverter Battery Energy Storage System

Product Details:
Place of Origin:
Brand Name:
Certification:
Model Number:
Payment & Shipping Terms:
Retail Price:
Wholesale Price: Negotiable
Packaging Details:
Payment Terms:
Nominal Capacity: Nominal Voltage:
Internal Impedence: Operating Votage:
Dimension: Battery Weight:

Product Description
all-in-one bess

Cost-Effective and High-Performance

Our solution is an all-in-one package: Battery packs, charge controller, BMS, EMS, and PcS, all integrated into a single unit with a highly efficient three-level topology to optimize system efficiency. It features a unique single-group and series design that eliminates parallel capacity loss.

Safety and Dependability

Our standard cabinet comes with fire system isolation, state-of-the-art liquid-cooling technology, combustible gas detection, and an FM200 fire extinguishing system, ensuring the safety and controllability of the system.

Smart and User-Friendly

Our system is versatile, compatible with 400V grid systems, and supports a range of applications including peak-shaving, demand control, backup power, and frequency regulation. It also offers monitoring and fault recording capabilities. Operational data can be accessed via WiFi, 5G, LAN, and other interfaces, facilitating remote operation.

Simple Installation

Our solution is a plug-and-play, turnkey system that can be easily scaled to meet any energy requirements.




Specifications



specifications



The All-in-One liquid-cooled energy storage terminal adopts the design concept of 'ALL in one,' integrating high-security, long-life liquid-cooled batteries, modular liquid-cooled PCS, intelligent energy management system, battery management system, efficient liquid-cooled thermal management system, fire safety system, all within a single standardized outdoor cabinet. It helps customers establish distributed energy storage capabilities

all-in-one components

Ultimate Safety


Electrical compartment separation in the battery compartment effectively prevents potential hazards caused by the accumulation of flammable gases.

high safety









high energy density

Economical

Highly efficient thermal stability, 20% increase for life cycle DC Round trip Rate up to 91%;

Seamless parallel operation without capacity loss

Supports mixed usage of new and old battery cells



Smart and Flexible

Modular design, Scalable up to 10 cabinets in Parallel
Play -and –Plug on site
Automatic on & off-grid switch in s/ms
Easy installation,High availability

Supports multiple communication protocols such as Modbus
TCP/RTU, MQTT, IEC 104, etc., for a more user-friendly
centralized control

All-in-One Integration 100KW/215KWh


Management System



Management System

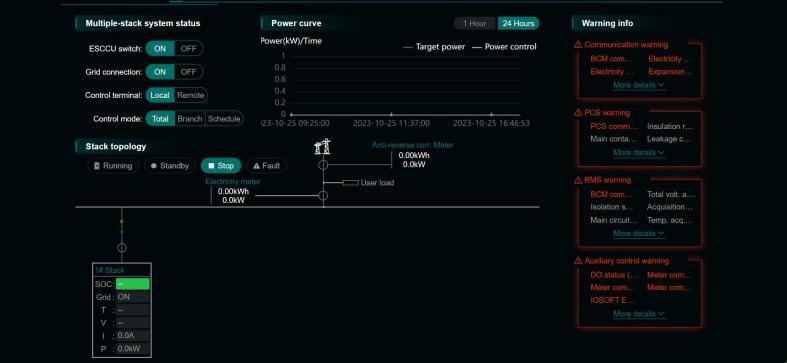

Home page include following info:

• Multiple Stack System Status
• Power Curve
• Stack topology
• Warning Info

 homepage

 Home Page



Rack Info

Rack Info

Pack Info
Pack info


Cell Info
Cell Info

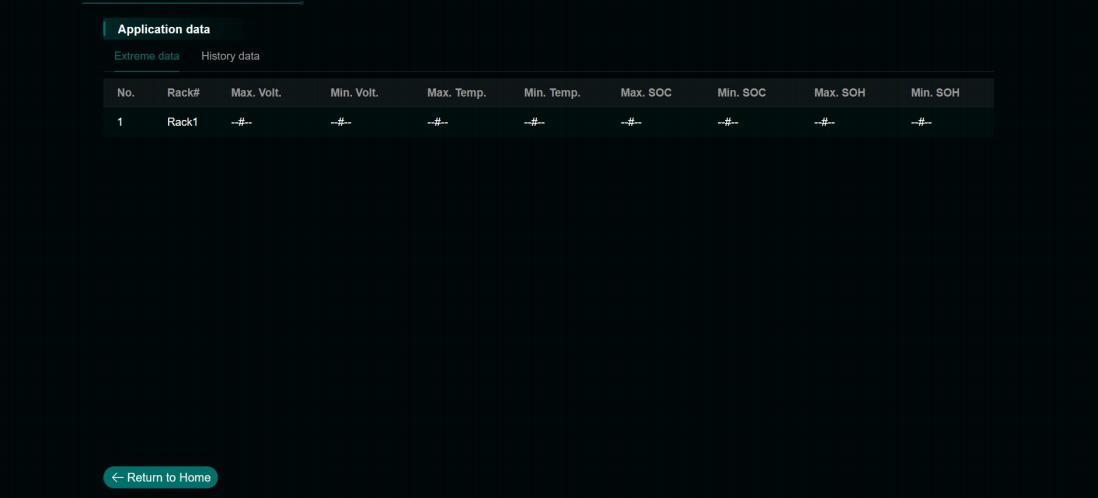

Application Data
Application Data


Active Warning
Active Warning



Total power control mode


(1)Total power control mode:

The power is evenly distributed when multiple stacks are paralleled.
• When the power input a positive value, it is set to discharge.
• When it input a negative value, it is set to charge.
• After setting is completed, click “Confirm” to issue the power control to PCS.



Branch control mode

(2)Branch control mode:

This step is not required for single cabinet system, but it is required for multiple cabinets.
• Individual rack can be configured to charge or discharge. When the power is set to a positive value, it is set to discharge.
• When it is set to a negative value, it is set to charge.
• After setting is completed, click “Confirm” to issue the power control to PCS.



Schedule control mode

(3)Schedule control mode

Set the required charging and discharging power according to the time period and plan.
• It is suitable for long-term fixed charging and discharging requirements.
