Product Details:
|
Nominal Capacity: | Nominal Voltage: | ||
---|---|---|---|
Internal Impedence: | Operating Votage: | ||
Dimension: | Battery Weight: |

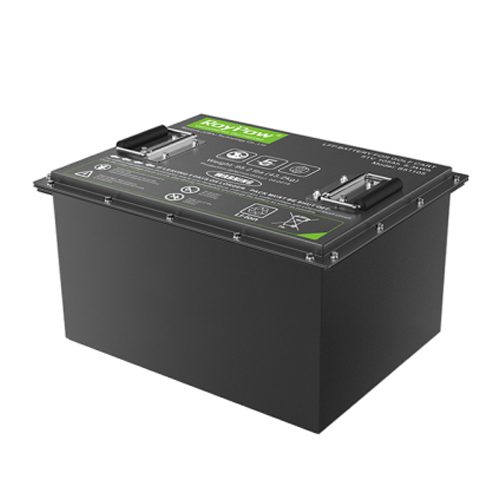

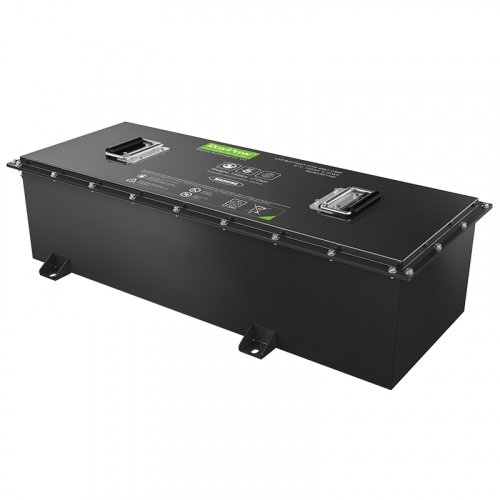

Golf Cart Lithium Battery
Now we provide quality lithium LiFePO4 battery packs to replace the lead-acid batteries for golf cart
Why choose the lithium battery for golf cart?
The market for golf carts is growing as more and more people take benefit of their versatility. For a long time, deep-cycle flooded lead-acid batteries have proven to be the most cost-effective method of powering electric golf carts. Due to the increasing use of lithium batteries for many high-power applications currently looking into the benefits of Lithium lifepo4 batteries for their golf carts.
Advantages:
High energy: low internal resistance and high efficiency
Ultra safe: multiple protection, thermal and chemical stability
Long cycle life: up to 3000+ life cycles
Light weight: up to 50% saving in space and 70% in weight than lead-acid battery
Quick: support fast charge
Maintenance free: no daily maintenance work and cost
Extreme temp. performance: discharge rate up to 85% at -20℃
Details
Battery unit:LiFePO4 safe and ECO friendly
Battery rack: it can meet different requirementsflexibly
Operation area: easy to operate, the indiacator light of the swich can tell if the battery is in good condition or not
Vent: when short circuit, the cell will release gas, the gas will come out from the VENT in case of explosion
Battery pack: reasonable separation to keep the consistency
Holder desigh: easy th carry and install
Information area: basic information of the weight and prodcution time
Technical specification
MODEL | EVL3856 | EVL3880 | EVL38105 | EVL5156 | Evl51105 | EVL72105 |
Nominal Voltage | 38V | 38V | 38V | 51V | 51V | 72v |
Nominal Capacity | 56Ah | 80Ah | 105Ah | 56Ah | 105Ah | 105Ah |
Energy | 2.15Kwh | 3.07Kwh | 4.03Kwh | 2.86kwh | 5.37kwh | 8.06kwh |
Cycle life | >3000times | >3000times | >3000times | >3000times | >3000times | >3000times |
Dimension | 385*338*245 mm | 385*338*245 mm | 385*338*245 mm | 460*334*247 mm | 460*334*247 mm | 740*320*246 mm |
Weight | 27kg | 31kg | 34kg | 33kg | 43.2kg | |
Standard charge current | 22A | 22A | 22A | 22A | 22A | 14A |
Max. continuous discharge current | 50A | 80A | 100A | 50A | 100A | 150A |
Max. pulse discharge current | 200A(10s) | 200A(10s) | 200A(10s) | 200A(10s) | 200A(10s) | 315A(30s) |
Environment Temp. Range: Charge: 0°C ~ 55°C, Discharge: -20°C ~ 55°C | ||||||
Cell combination | 12S1P | 12S1P | 12S1P | 12S1P | 16S1P | 24S1P |
Battery cell | 3.2V 50AH | 3.2V 80Ah | 3.2V 105Ah | 3.2V 50AH | 3.2V 105Ah | 3.2V 105Ah |
