Product Details:
|
| Nominal Capacity: | 50Ah | Nominal Voltage: | 48V |
|---|---|---|---|
| Internal Impedence: | Operating Votage: | 42V-54.75V | |
| Dimension: | 442*400*130.5mm | Battery Weight: | 25±2kg |

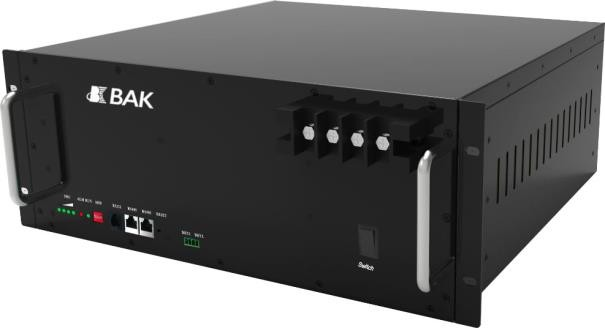

Long Service Life 48v 50ah Lithium Iron Phosphate Battery Pack
Model: LFP 3.2V50AH (27148130)

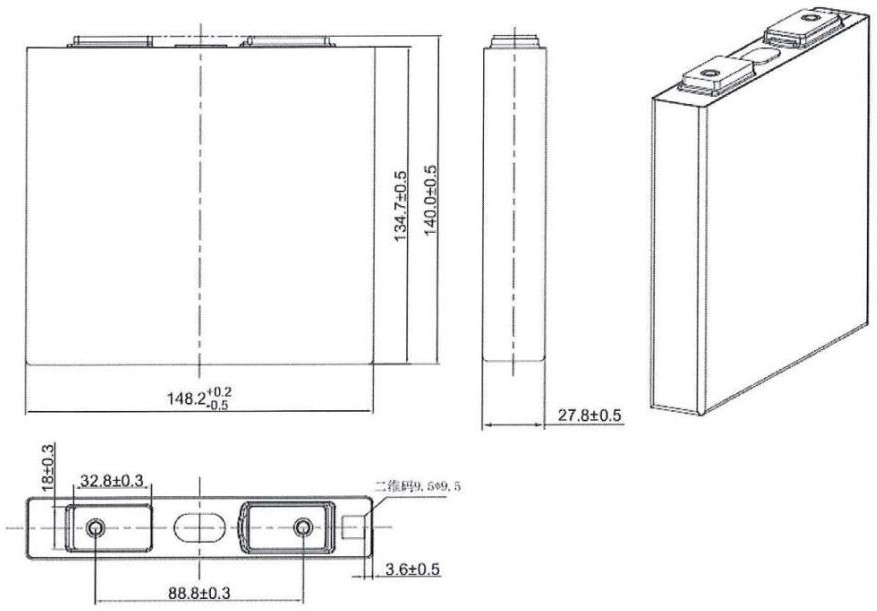

Cell physical dimension listed in following figure (unit: mm)

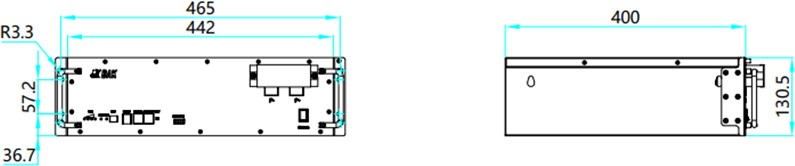

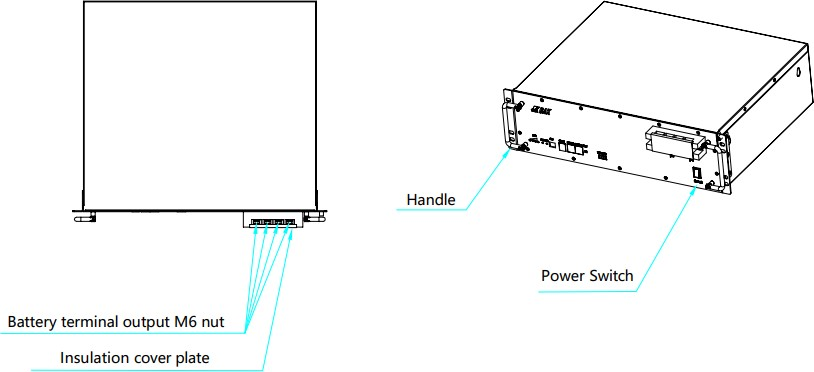

Finished product outline drawing
+ Installation Dimensions is suitable for 19'' rack mounting
+ Battery container: make by steel & powder coated, prevent corrosion
+ Structure of sensors: All sensor locations must be fixed, solid, safe (cell, environment, chipset)
+ Power cord and signal wire: Must be fixed, firm, neat, with code on each wire in the tank
Battery Pack Basic Performance
Item | Parameter |
Rated Capacity | 50AH |
Rated Voltage | 48V |
Standard Charge Current | 10A（0.2C） |
Max. Charge Current | 50A（1C） |
Charge Cut Off Voltage | 54.75V |
Max Continuous discharge Current | 50A（1C） |
Discharge Cut Off Voltage | 42V |
Max Pulse Discharge Current | 65A |
Working Temperature(charge) | 0℃~55℃ |
Working Temperature(discharge) | -20℃~60℃ |
Weight | 25±2kg |
Attentions
A）Prohibit of using battery in sunlight, otherwise will cause over hot, firing, or function failure, life reducing；
B）Prohibit use near static place which over 64V；
C）Prohibit charge at temperature below 0℃ or above 60℃；
When use at first time, if has corrosion, or bad smell, or any other abnormal, please do not use；
