Product Details:
|
| Nominal Capacity: | 314Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | / |
| Dimension: | 174.2(W)*71.8(T)*207.1(H)mm | Battery Weight: | 5.65±0.15Kg |
Specially optimised for use in stationary battery storage systems with the highest requirements on safety, reliability and performance. Suitable e.g. for industrial, utility, and grid serving applications.

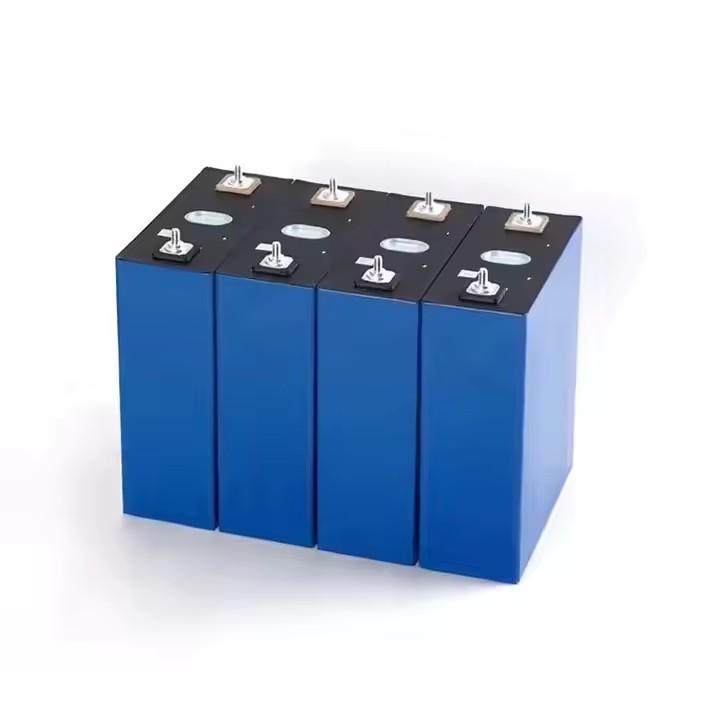

This lifepo4 battery cell has a capacity of 314Ah and a nominal voltage of 3.2V. It is designed to provide high energy density and long cycle life. The 314Ah lifepo4 battery cell is also known for its high safety performance and reliability.
Parameter | Specification |
Nominal Capacity | 314.0Ah |
Impedance (1KHz) | ≤0.25mΩ |
Shipping SOC | 5%~40% SOC |
Operating temperature (charging) | 0~60℃ |
Operating temperature (discharge) | -30~60℃ |
Optimum charging and discharge temperature | 20~30℃ |
Storage temperature | -30℃-45℃ One month -20℃~35℃ Six months |
Weight | 5.65±0.15Kg |
Self-discharge | ≤3.5%/month |
Cell dimension | 174.2(W)*71.8(T)*207.1(H)mm |
Standard charge current | 0.5C |
Maximum charge current (continuous) | 1.0C |
Standard charge voltage | Cell max voltage 3.65V |
Standard charge temperature | 25±2 ℃ ambient temperature |
Absolute charge temperature (Cell temperature) | 0~60℃ |
Absolute charge voltage | 3.65V max. |
Standard discharge current | 0.5C |
Maximum discharge current (continuous) | 1.0C |
Discharge cut-off voltage | 2.50V, 0℃＜T≤60℃ 2.00V, -20℃≤T≤0℃ |
Standard discharge temperature | 25±2 ℃ |
We can provide weld the M8 threads for those batteries and provided the busbars for easy connection.
