Product Details:
|
| Nominal Capacity: | 48 Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | Operating Votage: | 2.22V~3.65V | |
| Dimension: | 190(H)*130(W)*36(T) mm | Battery Weight: |
Nominal Voltage: 3.2V
Nominal Capacity: 60Ah
Operating Voltage:
2.22V~3.65V
Max. Charging Current: 1C
Max. Discharging Current:
3C

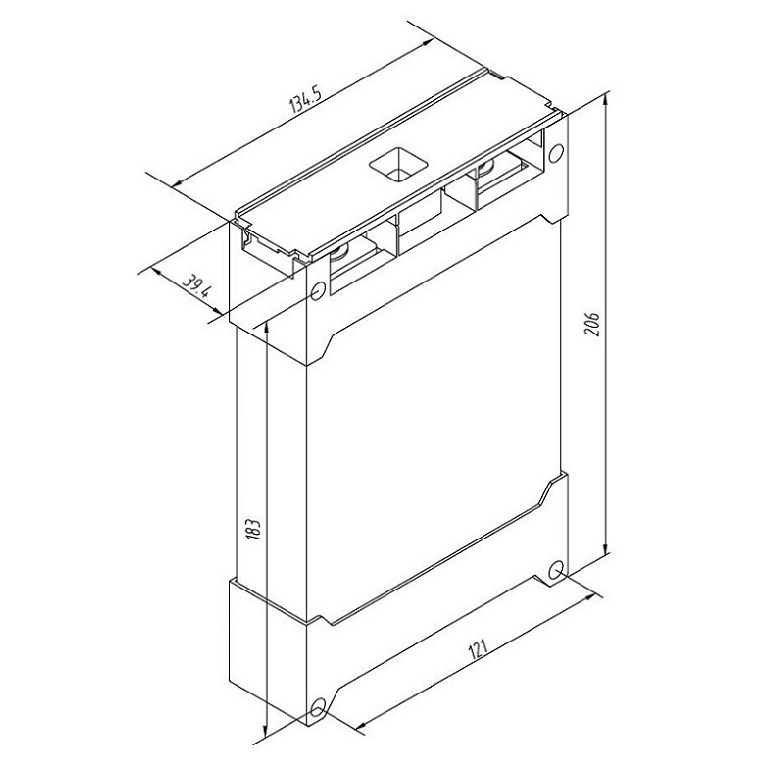

Dimension: 190(H)*130(W)*36(T) mm
Parameter | ||
Specification | Application | |
Capacity（Ah） | 60 | Pure electric vehicles
|
Product category | Prismatic aluminum case | |
Thickness（mm） | 36 | |
Width(mm) | 130 | |
Height(mm) | 190 | |
Nominal voltage(V) | 3.2 | |
Weight（Kg） | 1.65 | |
Standard current discharge（A） | 0.5C | |
Operating voltage range(V) | 2.2～3.65 | |
Operating temperature range(℃) | -20～55 | |
Maximum charge rate(Continued) | 1C | |
Maximum discharge rate(Continued) | 3C | |
Cycle life（times） | 80%DOD≥3000 times | |
We provide busbars, nuts and battery holders for custmomers who use 60ah fortune lifepo4 battery cells DIY battery packs.
Busbars Size : 60*30*1.5mm and
88*25*1.5mm
Certificates: UN38.3,MSDS,Rosh,ISO9001
etc.
1
Standard cell Precautions
a. Do not expose the cell to extreme
heat or flame.
b. Do not short circuit, over-charge or over-discharge the
cell.
c. Do not subject the cell to strong mechanical shocks.
d. Do not
immerse the cell in water or sea water, or get it wet..
f. Do not
disassemble or modify the cell.
g. Do not handle or store with metallic like
necklaces, coins or hairpins, etc.
h. Do not use the cell with conspicuous
damage or deformation.
i. Do not connect cell to the plug socket or
car-cigarette-plug.
j. Do not make the direct soldering onto a cell.
k.
Do not touch a leaked cell directly.
l. Do not use for other equipment.
m. Do not use Lithium-ion cell in mixture.
n. Do not use or leave the
cell under the blazing sun (or in heated car by sunshine).
o. Keep cell away
from children.
p. Do not drive a nail into the cell, strike it by hammer or
tread it.
q. Do not give cell impact or fling it.
2.1 Charging
a. Charge the cell in a temperature range of 0°C to + 50°C.
b. Charge the cell at a constant current of 0.3Cuntil 3.65V, and then at a
constant voltage of 3.65V until
0.05C. Charge rates greater than 1C are
NOT recommended. (C : Rated Capacity of cell)
c. Use a constant current,
constant voltage (CC/CV) lithium-ion (Li+) cell charge controller.
d. Do not
continue to charge cell over specified time. 。
2.2 Discharging
a. Recommended cut-off voltage to 2.2V. Recommended max continuous
discharge current is 3C。
b. For maximum performance, discharge the cell in a
temperature range of -20°C to +50°C.
2.3 Storage Recommendations
In case of long period storage (more than 3 months), storage the cell at
temperature range of –10 ~ +45°C, low humidity, no corrosive gas atmosphere，No
press on the cell；And more than 3 months need to put a charge according to the
standard charge and discharge process
