Product Details:
|
Nominal Capacity: | 72Ah | Nominal Voltage: | 3.2V |
---|---|---|---|
Internal Impedence: | ≤1.0mΩ | Operating Votage: | 2.0V-3.65V |
Dimension: | 222*135*29mm | Battery Weight: | ≤1750g |

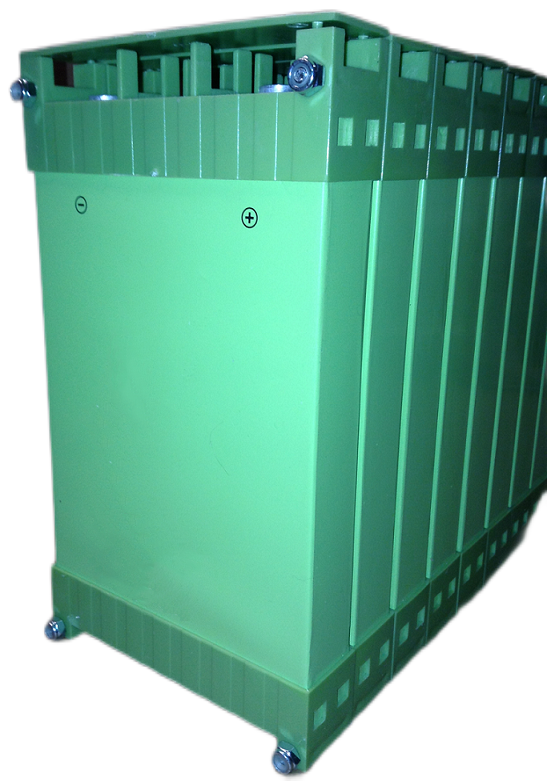

Lifepo4 Rechargeable Battery 3.2V 72Ah li-ion Lithium Battery for Solar System for EV
3.2V 72Ah LIFEPO4 Battery :
Battery Features :
High Energy Density
High capacity
Long Cycle Life
Discharge stability
Good consistency
Environment-Friendly
Applications :
Solar system
Energy storage (ESS)
Electric bus
Golf carts
RV

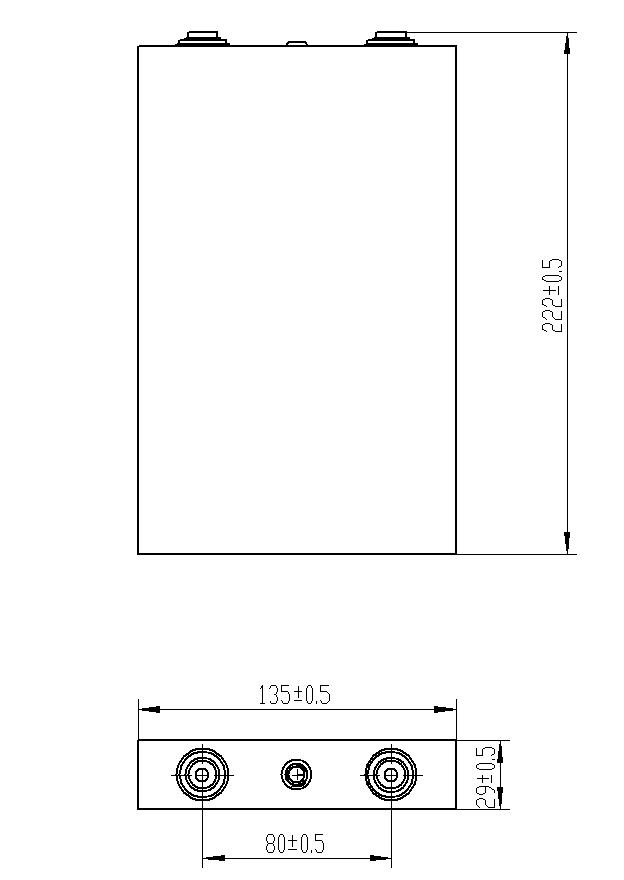

Battery dimension :
Parameters :
Typical Capacity | 72Ah |
Nominal Voltage | 3.2V |
End-of-discharge Voltage | 2.0V |
Standard Charging Method | Constant current and constant voltage |
Standard Charging Current | 1/3C |
Standard Charging Voltage | 3.65V |
Standard Charging Current | 1/3C |
Maximum Discharge Current | 3C |
Cycle Life | ≥2000 cycles |
Internal Impedance | ≤1.0mΩ |
Cell Weight | ≤1750g |
Charging Temperature | 0℃ ~ 50℃ |
Discharging Temperature | -20℃ ~ 55℃ |
Height ( H ) | 222±0.5mm |
Width(L) | 135±0.5mm |
Thickness(T) | 29±0.5mm |
Shell Material | Aluminum |
