2.4V 45Ah 66160 Lithium Titanate LTO Battery Cell

Product Details:
Place of Origin: China
Brand Name: /
Certification: CE
Model Number: 66160
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
Nominal Capacity: 455Ah Nominal Voltage: 2.4V
Internal Impedence: / Operating Votage: /
Dimension: 66*161 mm Battery Weight: 1250g±12g

Product Description

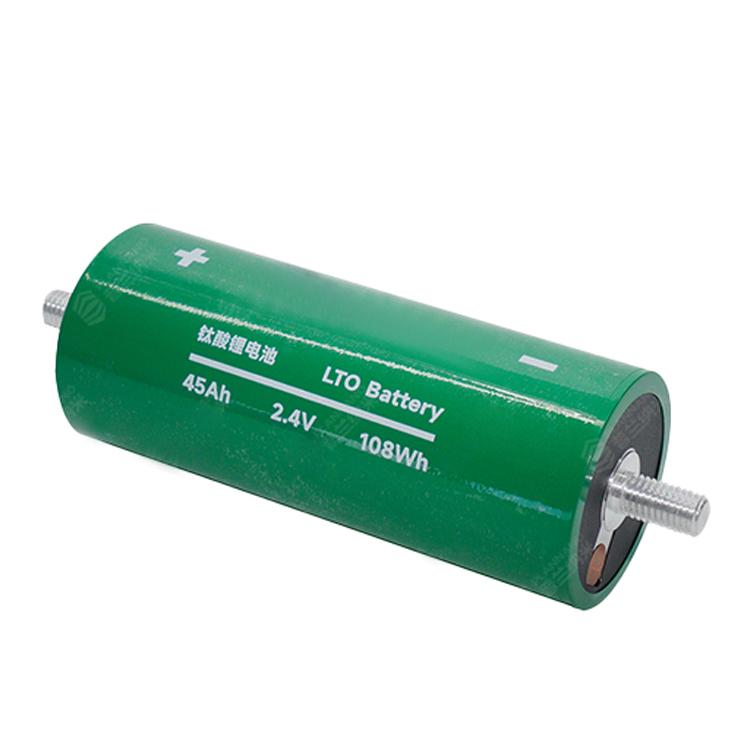

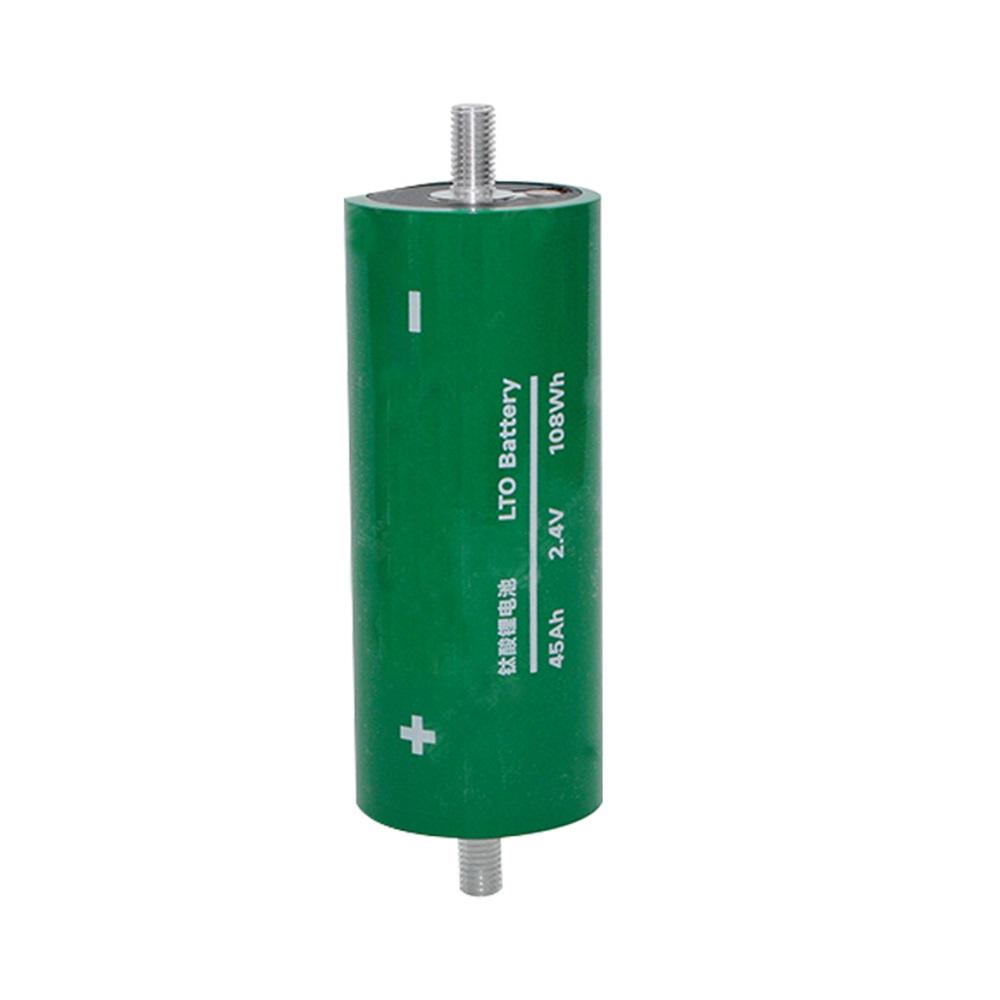

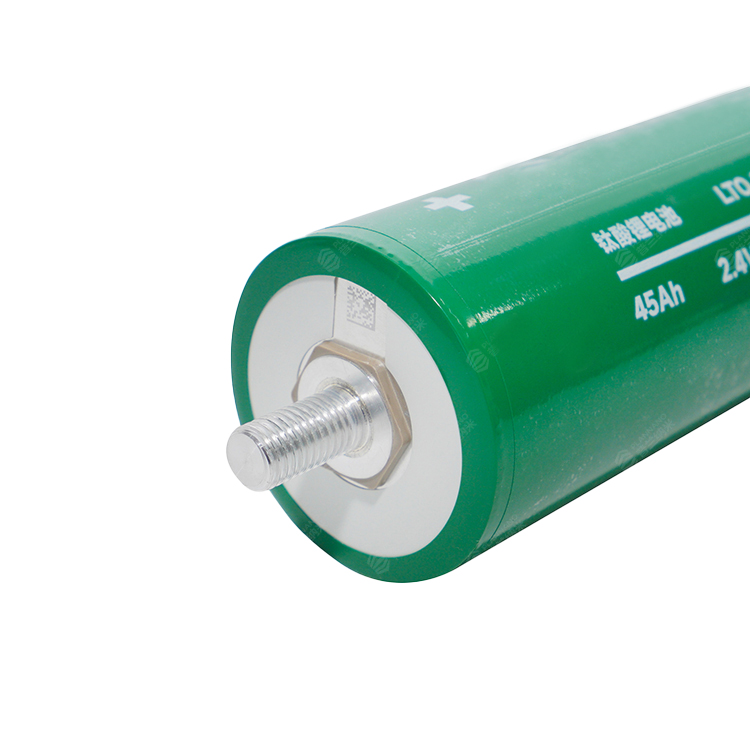

2.4V 45Ah 66160 Lithium Titanate LTO Battery Cell


Based on the LTO material technology and high energy density cell technology with independent intellectual property rights, we took the lead in solving the industry problem of gas generation at high-temperature of LTO battery, and has developed products with excellent performance and cost effectiveness. Advanced technology, simple process and low cost.

4.jpg 34.jpg


Features:


High safety: no dendrite, good thermal stability, intrinsic safety

Long cycle life: more than 20  years

High rate: Fully charged in 6 min, completely discharged in 6 min

Wide Working Temperature: It can be charged and discharged repeatedly at -50~65℃

Recycle: Recycling rate of the cell >97%


Specification:

Item

Specification

Model

PLITR66160CSTE-45Ah-2.4V

Weight

1250g±12g

Nominal capacity

45Ah

Nominal voltage

2.4V

Nominal Energy

108Wh

Energy Density

86.4Wh/kg

Resistance

≤0.3mΩ(AC, 1000Hz)

Charging cut-off voltage

2.9V

Discharging cut-off voltage

1.5V

Standard charging current

45A

Standard discharging current

45A

Max. Constant Charging Current

360A

Max. Constant Discharging Current

360A

Max. Charging Current

900A

Max. Discharging Current

1350A

Temperature Range for Storage

Less than one year-10~25℃

Less than three months-30~45℃

Transportation Voltage

≥2.4V

Appearance

No crack, scratch, distortion, prominence, leakage, etc.


Dimension:




Appearance and Dimension





Package:





Package




2.3V 45Ah LTO Gree Yinlong Lithium Titanate Battery Cell
