Product Details:
|
| Nominal Capacity: | 153Ah | Nominal Voltage: | 14.6V |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | / |

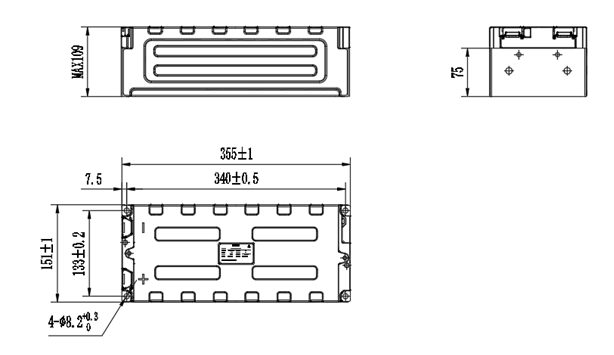

| Dimension: | 355±1*151±1*108±1mm | Battery Weight: | ≤11.0Kg |

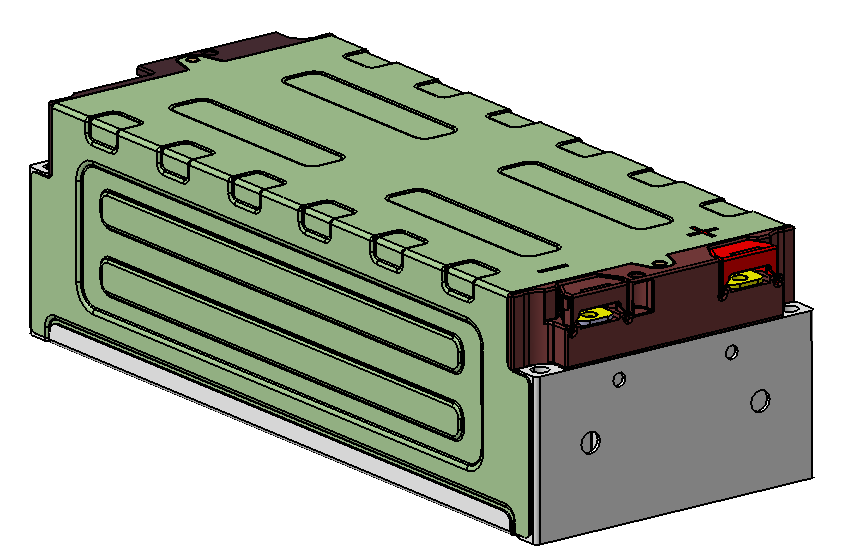

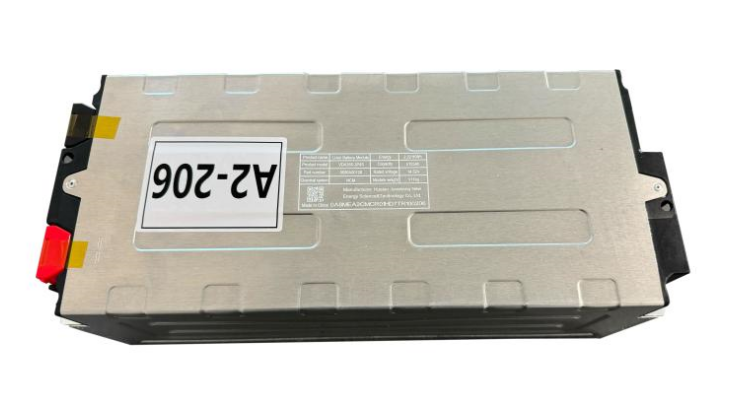

The VDA355 module is a standard size battery module. The dimensions are: length 355*width 151*height 108.5mm. This battery module has the characteristics of good versatility, high energy density and compact size. It is suitable for various new energy passenger cars and commercial vehicle battery packs of VDA355 module size. It can also be used for energy storage, ships, VGA, and mining machinery. and other application scenarios.
Parameters：
Item | Specifications |
Configuration | 3P4S |
Module Size | 355±1*151±1*108±1mm |
Module Weight | ≤11.0Kg |
Rated Voltage | 14.6V |
Working Voltage | 10.8~17.2V |
SOC Range | 5~95% |
DCR | ≤2.5mΩ |
Rated Capacity | 153Ah |
Rate Denergy | 2221Wh |
Energy Density | 205Wh/kg |
Volume Energy Density | 383Wh/L |
Efficiency | 82% |
Charging Temperature | 5~45℃ |
Discharging Temperature | -20~55 |
Storage Temperaturerange | -20~45℃ |
Maximumcontinuous Discharge | 25℃，≤1.5C(≥30%SOC) |
-20℃，≤1C(≥30%SOC) | |
Maximumpulse Discharge Current | 4C |
Cycle Life | >2000 times |
Details：
