Product Details:
|
Nominal Capacity: | Nominal Voltage: | ||
---|---|---|---|
Internal Impedence: | Operating Votage: | ||
Dimension: | Battery Weight: |
Product parameters:

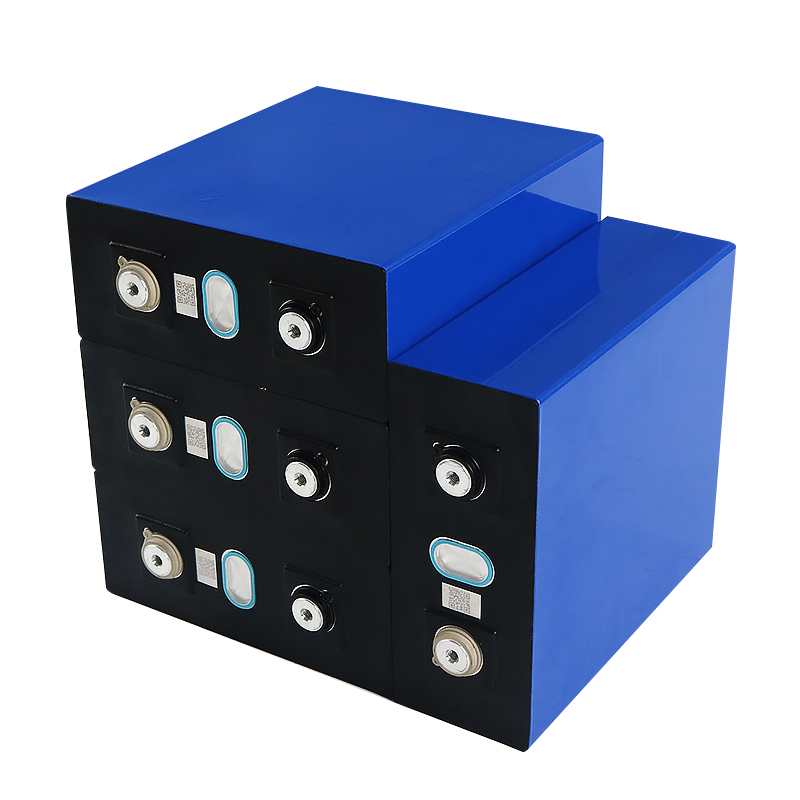

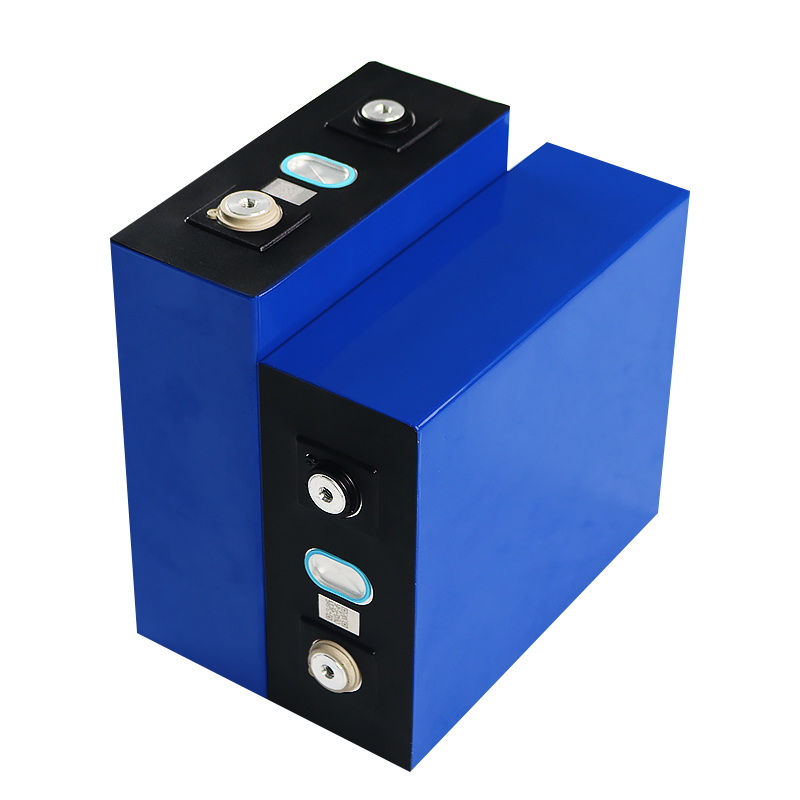

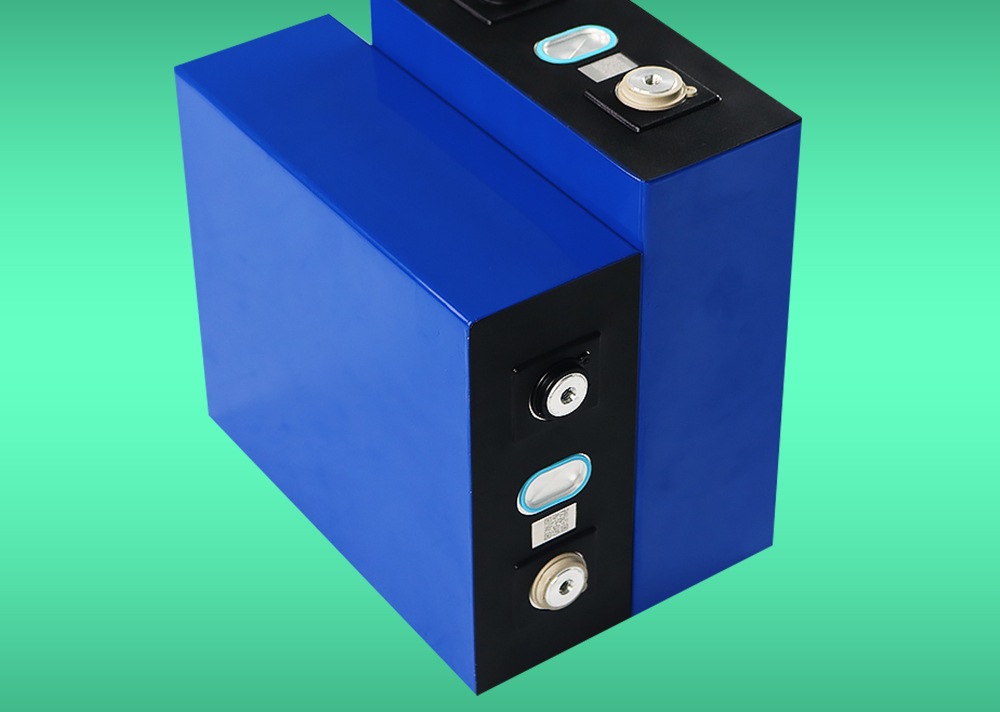

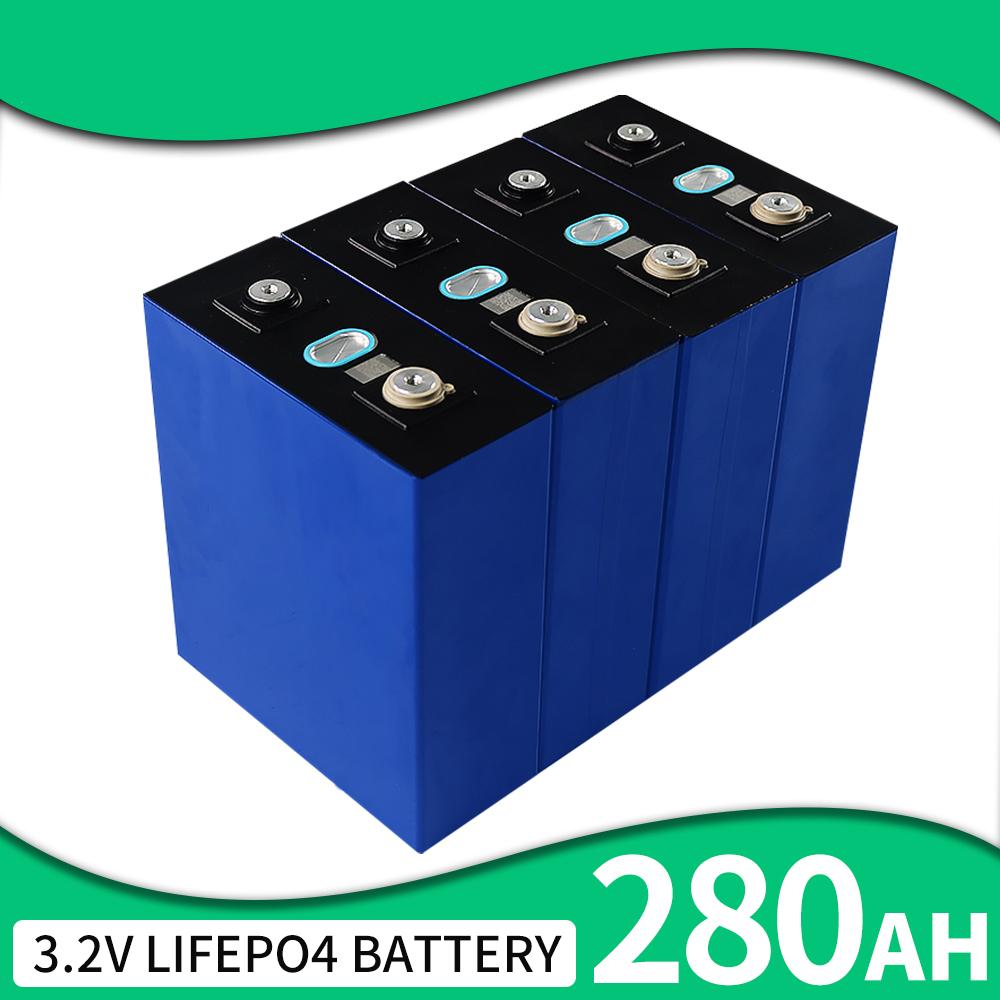

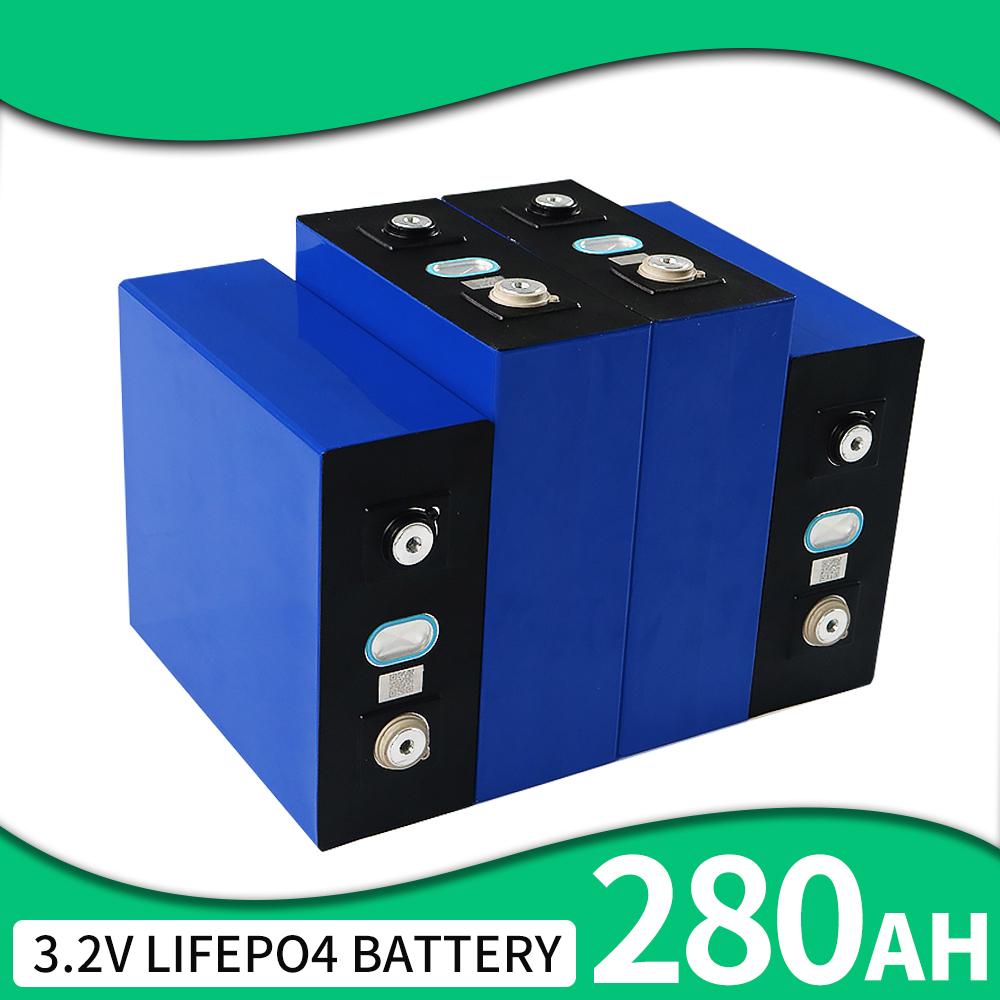

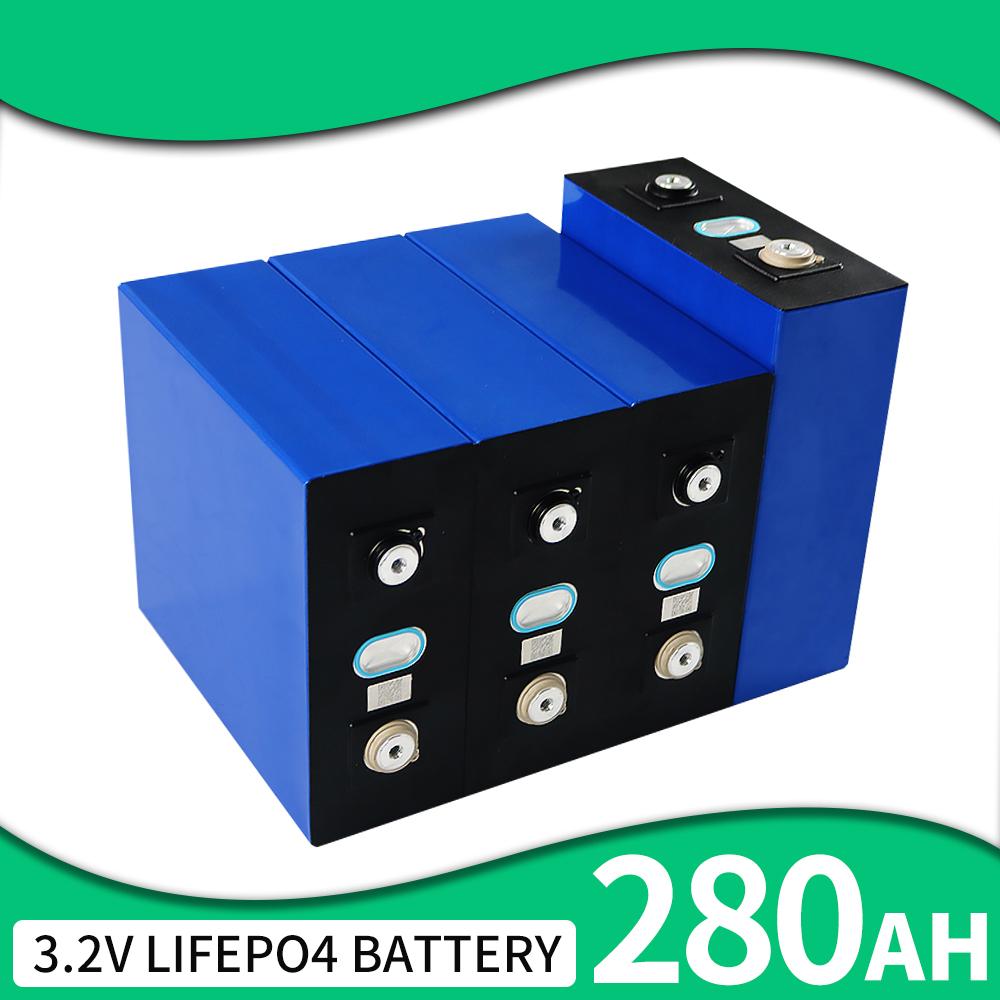

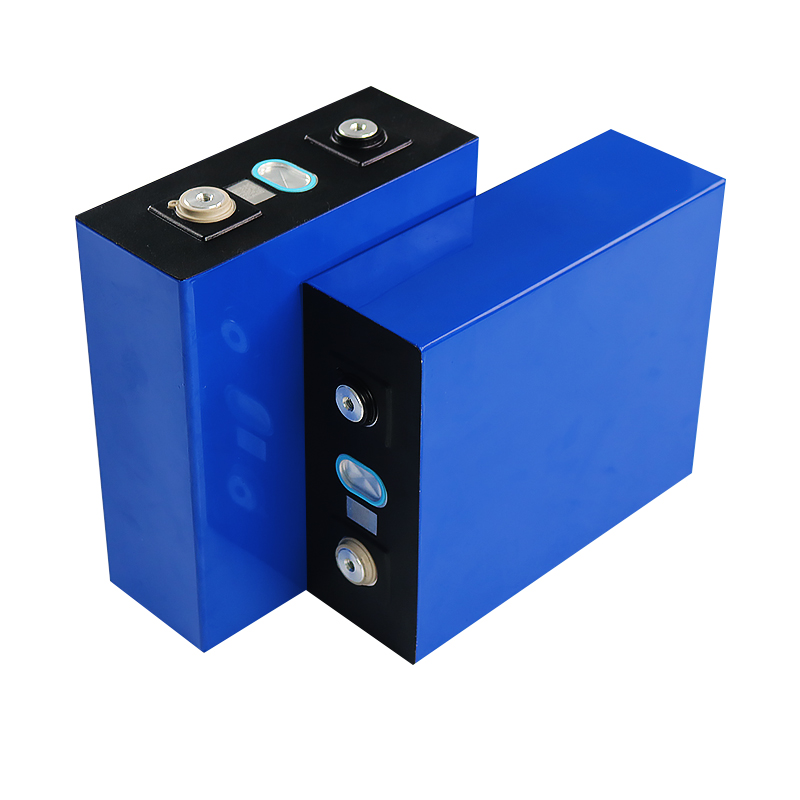

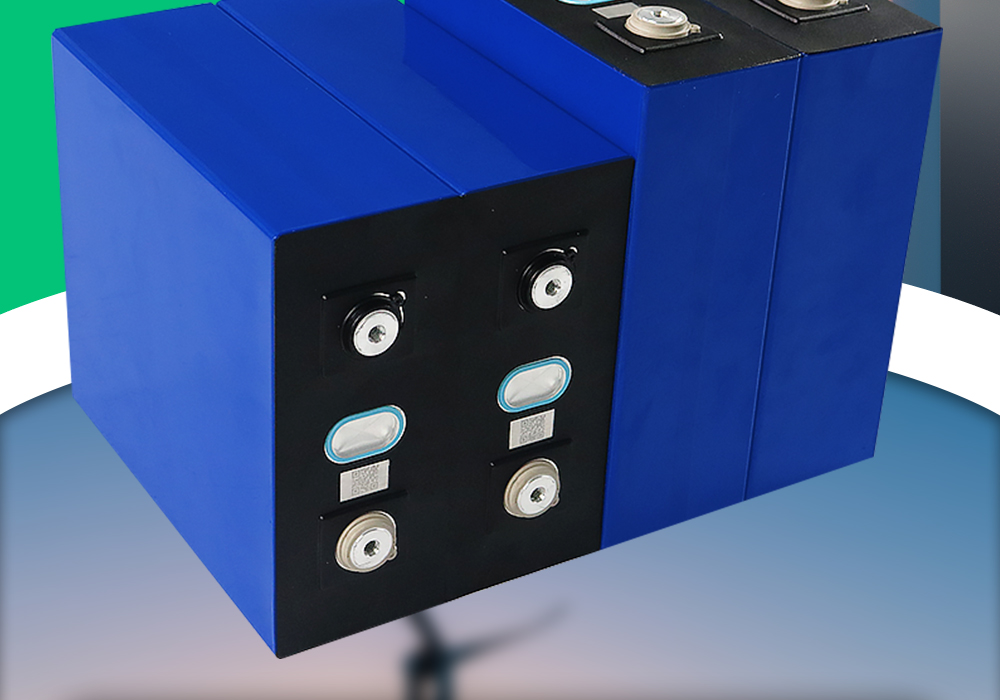

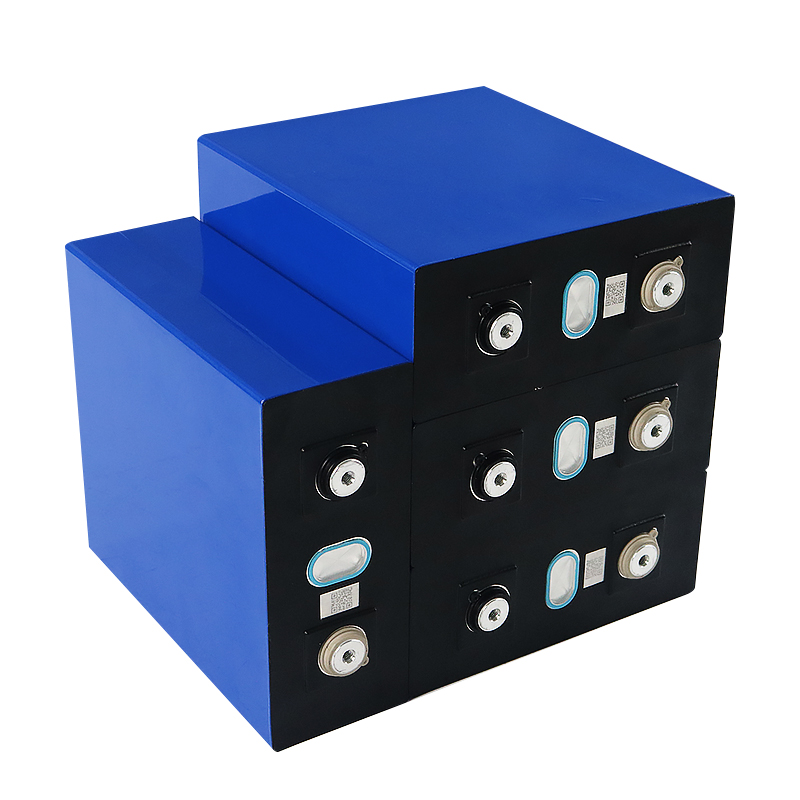

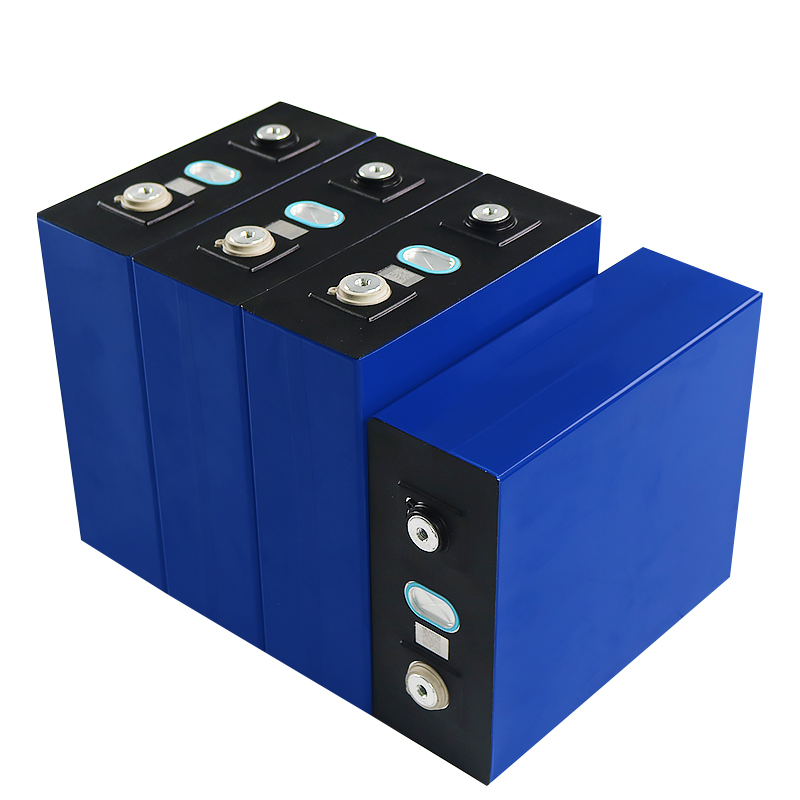

Product Name: Lithium iron phosphate cell
Shell Material:Aluminium
Rated capacity:280AH
Minimum capacity:280AH
Internal impedance:less than 0.5mΩ
Nominal voltage:3.2V
Dimensions(L*W*H):173.8*71.45*200.8mm
Weight:5.3kg±0.1kg
Screw Size:M6
End-of-Discharge Voltage:2.5V
Charge Voltage:3.65V
Cycle life (80%DOD):3500 cycles
Charging Temperature:0~60°C
Discharging Temperature:-35~65°C
Recommend Constant Charge Current:0.5C
Max Charge Current:2C
Recommend Constant Discharge Current:0.5C
Max Discharge Current:2C
