30KW Forklift Charger 80V Lithium Battery Charger for AGV Forklift

Our company has 20 years of on-board charger, DC/DC converter research and development technology and process accumulation, forming a mature standardized software and hardware platform. Provide customized and integrated interface circuits according to the specific needs of customers, ensure the high reliability of the product from the design source, and greatly shorten the product design cycle, provide reliable, continuous and stable work for the product under complex working conditions, advanced irrigation The sealing process ensures the high protection and shock resistance of the product, and prolongs the service life of the product to the greatest extent. With a professional design platform, we are committed to customer service and promote the development of the forklift industry.

As the cost of lithium batteries is on a downward trend, electrification and lithium electrification of forklifts will become a trend. More and more forklifts will be driven by engines and replaced with lithium batteries as the power source.

Forklift Charger Features:

High Efficiency, High Power Density

Wide working voltage

low input harmonics

wide operating temperature

Support hot-swappable and parallel functions Perfect fault detection tips

With three protection functions

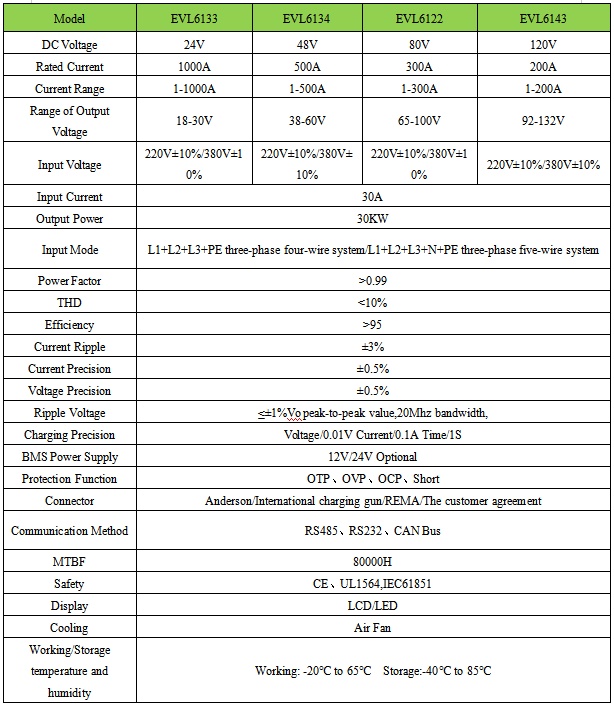

Forklift Charger Specification Sheet:

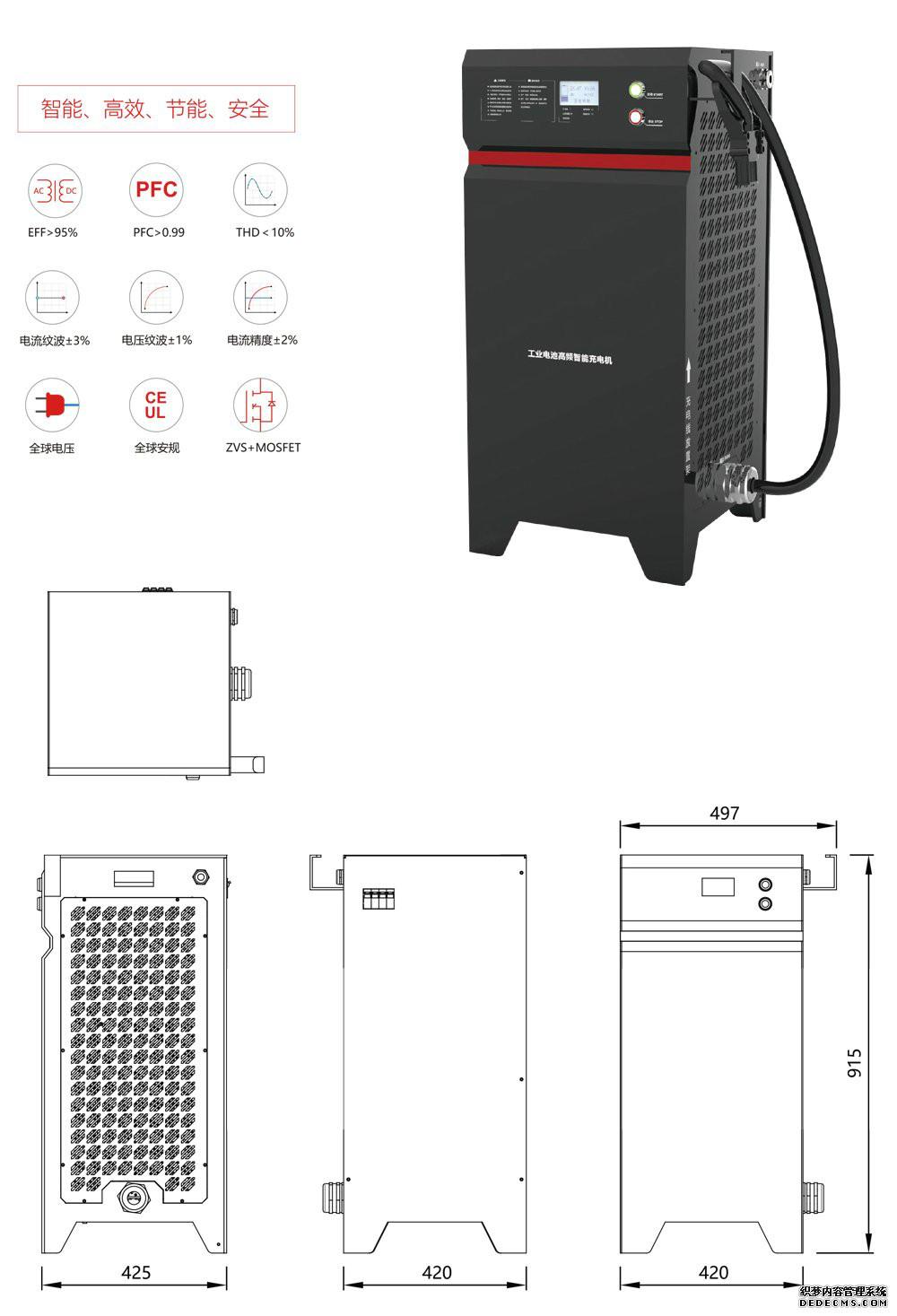

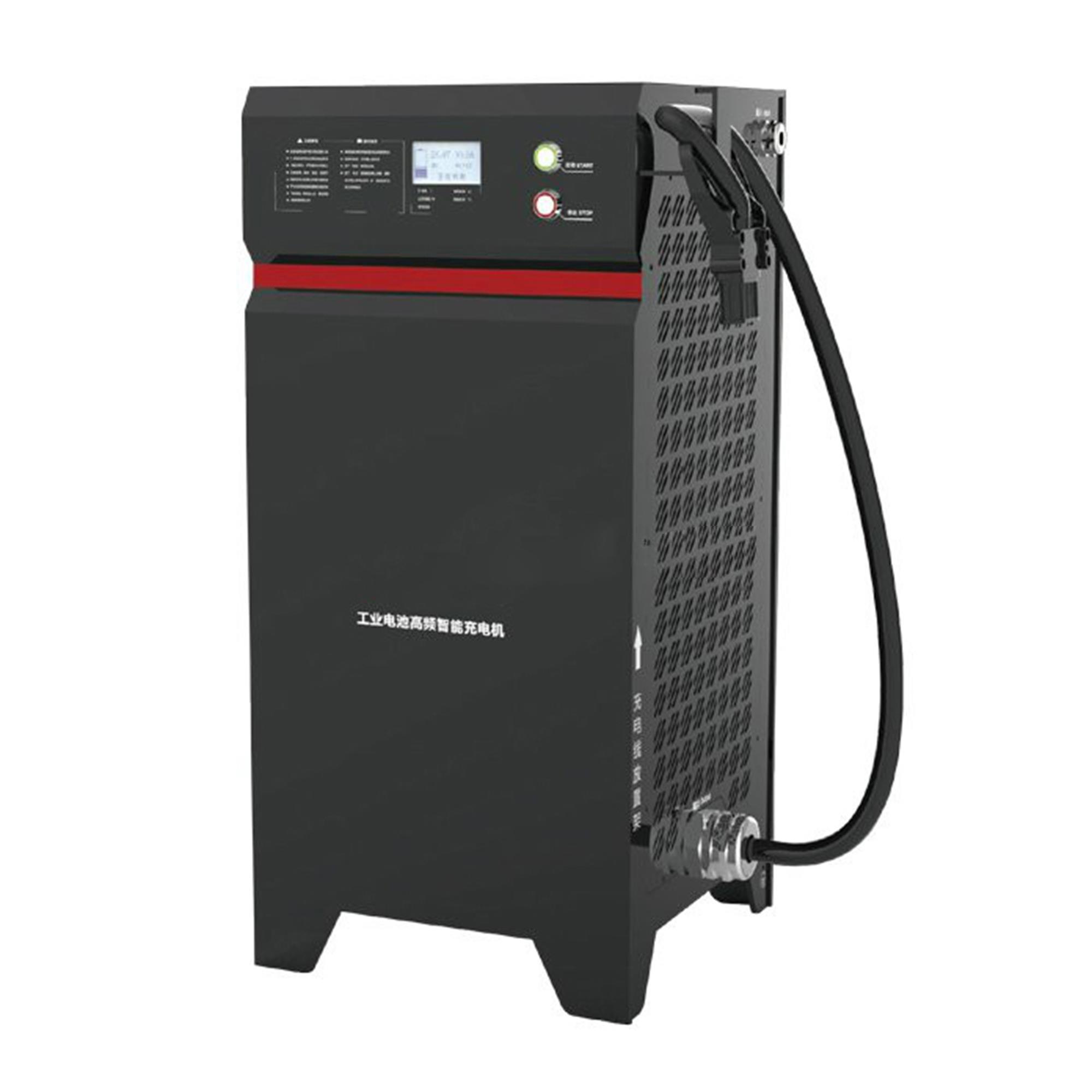

Forklift charger picture:

Daily inspection:

Do not remove the outer cover when powered on, and visually check the operation of the charger from the outside to confirm that there is no abnormal situation. The following points are usually checked.

(1) The operating performance meets the standards and specifications;

(2) The surrounding environment conforms to the standards and specifications (see the use environment);

(3) The panel instrument shows that all the function switches are normal;

(4) No abnormal voice, vibration and smell;

(5) Whether the fan is running normally;

(6) No abnormal conditions such as overheating or discoloration;

(7) Whether the input voltage is in the normal working range;

(8) Whether the connecting line joints are fastened.

FAQ

Q1: What is our products advantage?

A: Company R&D team's twenty years of on-board charger, DC/DC converter research and development technology and process accumulation have formed a mature standardized software and hardware platform.

Q2: Is CAN Communication available?

A:Yes, optional

Q3: Safety Protection?

A:Yes, our charger takes very solid safety protection design.

Q4. What is your terms of payment?

A: 100%T/T in advance before shipment is Preferred, it is negotiable.

Q5: How to maintain the forklift charger?

A: The charger adjusts and cleans the sediment of the air inlet outlet every 10 days (according to the environmental conditions), so that the air inlet window is unimpeded and the air flow is maintained, which is conducive to the heat dissipation of the whole machine.
