Product Details:
|
| Nominal Capacity: | 306Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | / |
| Dimension: | 207.2*204.6*71.7 mm | Battery Weight: | 5.6kg±300g |

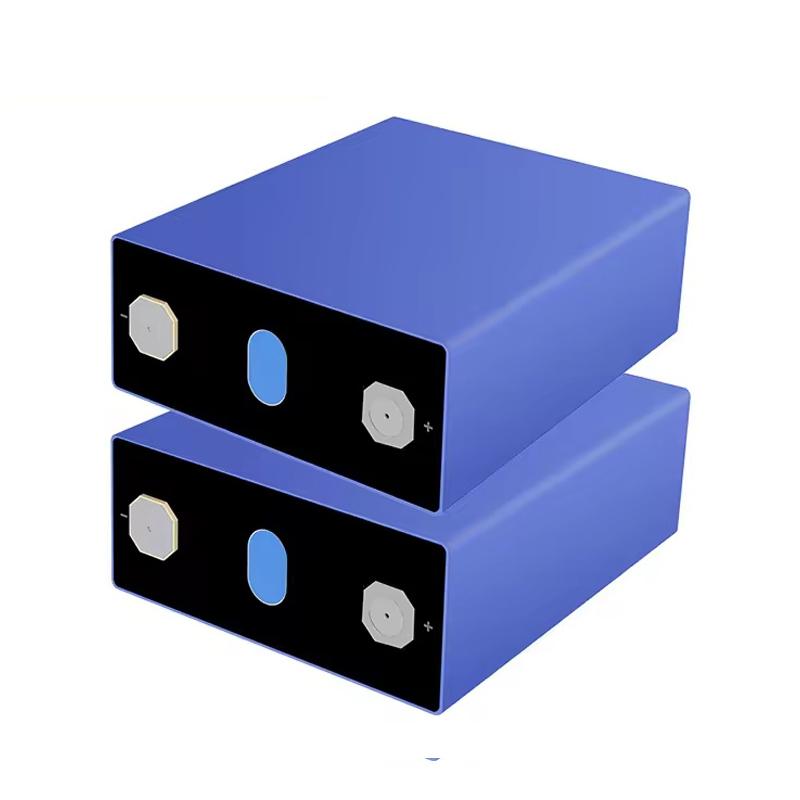

The EVE 306Ah MB30 LiFePO4 battery is a brand new A-grade battery with clear QR code traceability.
We will weld M6, M8 or bipolar ear bolts on the battery for free, and provide connecting pieces and related accessories.
It is designed for use in a variety of applications, including solar energy storage, electric vehicles, and backup power systems.
Parameters：
Items | Specifications |
Model | MB30 |
Nominal Capacity | 306 Ah |
Nominal Energy | 979.2 Wh |
Nominal Voltage | 3.2V |
Chemistry | Lithium Iron Phosphate (LiFePO4 or LFP) |
End-of-charge Voltage (Umax) | 3.65 V |
End-of-discharge Voltage(Umin) | 2.5V(T>0℃), 2.0V(T≤0℃) |
Standard Charging Power | 0.5P |
Max.Continuous Charging Power | 0.5P |
Standard Discharging Power | 0.5P |
Max.Continuous Discharging Power | 0.5P |
Charging Temperature | 0℃~60℃ |
Discharging Temperature | -30℃~60℃ |
Initial Internal Resistance | 0.18 mΩ ±0.05 mΩ |
Weight | 5.6kg±300g |

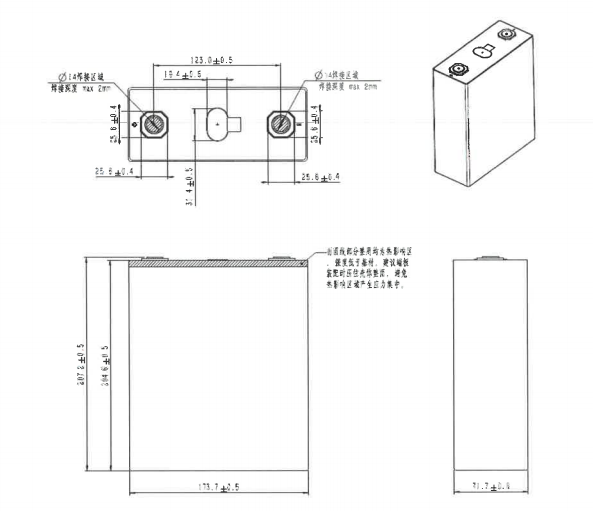

Dimensions | 207.2*204.6*71.7 mm |
Cycle Performance | ≥10000 Cycles |
Details：
This is an MB30 306Ah lifepo4 battery ordered by some customers, with double pole ears welded, and we have matched bolts and other accessories for the customers.
