Product Details:
|
| Nominal Capacity: | 150Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | / |
| Dimension: | 207(H)*200.7(W)*33.25(T)mm | Battery Weight: | 2830 g ± 84 g |

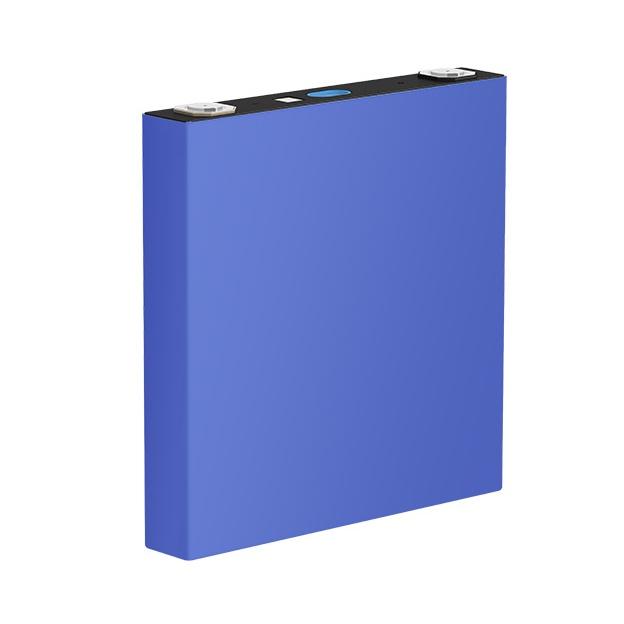

EVE LF150 3.2V 150Ah 480Wh Prismatic LFP Battery Cell With Aluminum Shell ≥4000 Cycle Rechargeable for RV, EV, golf carts, ESS, and solar system. etc.
Features:
Intelligent factory design, high-performance consistency.
Square aluminum shell structure, high precision explosion-proof valve, high safety performance.
Low internal resistance, high discharge rate, and stable discharge platform.
Long cycle life, capacity retention rate over 80% after 4000 cycles at 1C/1C.
Green environmental protection.
Specification:
Item | Parameter |
Model Number | LF150 |
Battery Type | LFP |
Place of Origin | Hubei, China |
Nominal Capacity | 150Ah |
Nominal Electricity | 483.0Wh |
Initial IR(1KHz) | ≤0.4mΩ |
Standard Charging Current | 75.0 A(0.5C) |
Standard Discharging Current | 75.0 A(0.5C) |
Standard Charge-discharge rate | 0.5C(MAX 3C) |
Cycling Performance | 4000 Cycles (25℃),2000 Cycles(45℃) |
Storage Temperature | 0 ℃ ~ 35 ℃(3months) |
Charging Temperature | -10℃~65℃ |
Discharging Temperature | -35℃~65℃ |
Cycles | 4000cycles(0.5C/0.5C@80%DOD) |
Weight | 2830 g ± 84 g |
Dimension | 207(H)*200.7(W)*33.25(T)mm |
Cell Drawing of LF150:
Details :
Operation Precautions:
It is strictly forbidden to immerse the battery in water. When it is not in use, it should be placed in a cool and dry environment
It is forbidden to use and leave the battery next to heat and high temperature sources, such as fire, heater, etc.
Please use a special charger for lithium-ion batteries when charging
During usage, it is strictly prohibited to reverse the positive and negative terminals of the battery
Do not throw the battery in the fire or heater
It is forbidden to use metal to directly connect the positive and negative terminals of the battery to short-circuit
It is forbidden to transport or store the battery with metal, such as hairpins, necklaces, etc.
It is forbidden to knock or throw, step on, or bend the battery.
It is forbidden to directly weld the battery or pierce the battery with nails or other sharp objects
It is forbidden to use or place the battery under high temperature (under hot sunlight), otherwise it may cause the battery to overheat or fail to function and shorten its life.
It is forbidden to use it in places with strong static electricity and strong magnetic fields; otherwise it will easily damage the battery safety protection device and bring hidden dangers of safety.
If the battery leaks and the electrolyte splashes on the skin or clothes, immediately wash the affected area with running water. If the battery leaks and the electrolyte enters the open parts of the human body such as the eyes, mouth, nose, etc., immediately rinse the eyes with a large amount of water and send to a doctor for treatment immediately, otherwise it will cause serious harm to the human body.
If the battery emits peculiar smell, heat, discoloration, deformation, or any abnormality during use, storage, or charging, immediately remove the battery from the device or charger and stop using it.
