Product Details:
|
| Nominal Capacity: | 132.5Ah | Nominal Voltage: | 3.22V |
|---|---|---|---|
| Internal Impedence: | ≤0.3mΩ | Operating Votage: | 2.50V-3.65V |
| Dimension: | (194±0.5)x(50.7±0.3)x(112.7±0.4)mm | Battery Weight: | 2370 ± 30g |
The EVE A31-V1 battery features a long lifespan, stable performance, and excellent safety characteristics. It is widely applicable in the following areas: Bulldozers, Heavy Trucks, Forklifts, Passenger Cars, Buses , This battery provides reliable power support in various working environments, making it an ideal choice for industrial applications and daily transportation, ensuring efficient operation of equipment.
Parameter | Specification | Remarks |
Min. Capacity | 132.5Ah | 1/3C , 25±2℃, 2.50V-3.65V |
Min. Energy | 426.7Wh | 1/3C , 25±2℃, 2.50V-3.65V |
Initial IR | ≤0.3mΩ | AC, 1kHz, 21%SOC |
Nominal Voltage | 3.22V | 1/3C, 25±2℃, 2.50V-3.65V |
Weight | 2370±30g | / |
Charging Cut-off Voltage (Max) | 3.65V | / |
Discharging Cut-off Voltage (Min) | 2.50V ( >20℃) 2.00V (-30℃≤T≤20℃) | / |
Fast Charge Performance | 20min (3C ) | 10%~80%SOC, 25±2℃ |

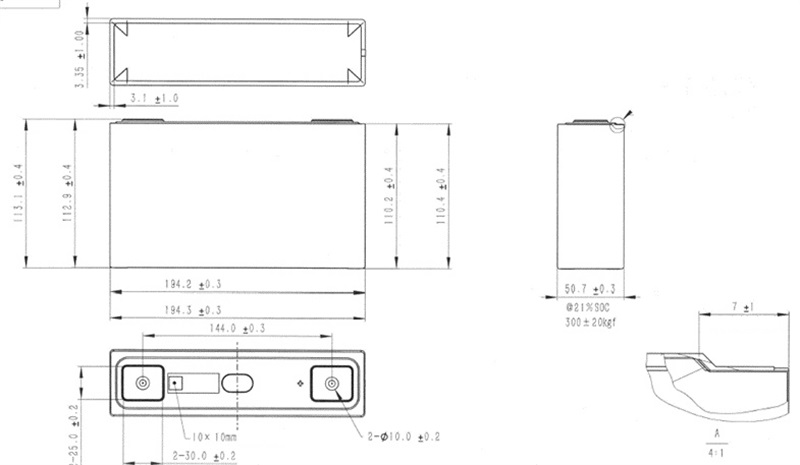

Dimension | (194±0.5)x(50.7±0.3)x(112.7±0.4)mm | / |
Cycle Performance | 2000 Cycles (25℃ fast charge cycle ) | Under 300kgf±20kgf clamping force, 3%~100%DOD, 2.50V-3.65V, fast charge/1C discharge; Capacity retention≥80% 3%~100%DOD |
1200 Cycles (35℃ fast charge cycle ) | ||
Operating Temperature | -20℃~ 55℃ | Charging Temperature |
-30℃~55℃ | Discharging Temperature | |
Storage Temperature
| -40℃~55℃ (≥30d ) | Delivery SOC State (21% 3%SOC) |
55℃~60℃ (＜30d ) |
1. International regulatory certification, CE, ROHS, RECHAR, BIS, EPR, RCM, PSE, GOST, MIC...
2, product test report, IEC62368, IEC62619, IEC62620, CB, GB, CCC, CCS. ..
3, international transportation, UN38.3 (support for sea, land and air transportation), MSDS, UL, ATEX. ..
4. Special certificates: ESG, ASPICE CL2, ISO26262, TISAX, Green Factory...
5. We support certification according to customer needs to ensure product quality and transportation safety
EVE A31-V1 3.22V 132.5Ah LiFePO4 Prismatic Battery is suitable for electric vehicles, AGVs, home energy storage, and engineering vehicles.
