Product Details:
|
| Nominal Capacity: | 100Ah | Nominal Voltage: | 48V |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | / |
| Dimension: | 410*442*177.5mm | Battery Weight: | About 45Kg |

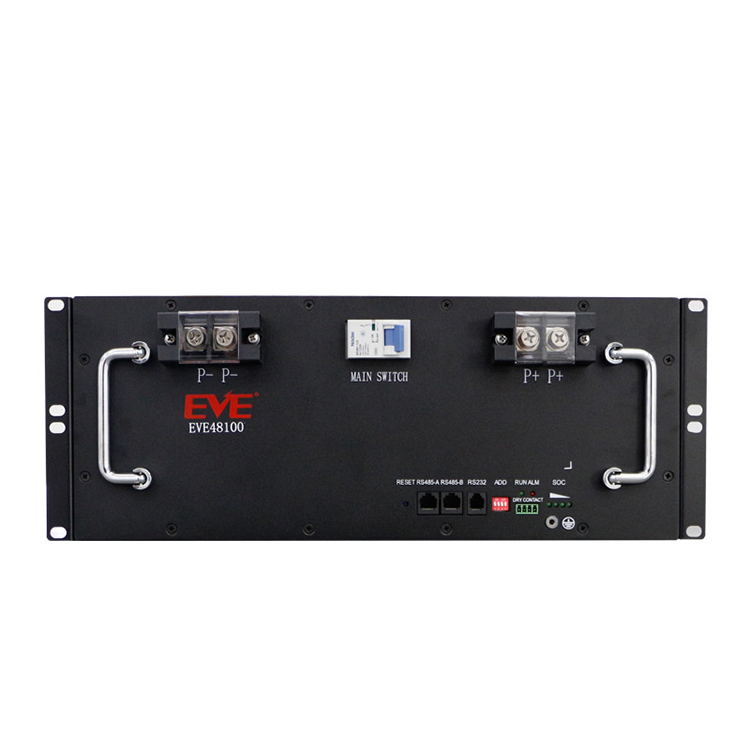

EVE Battery 48V 100Ah LiFePO4 Battery Pack
For ESS And Telecom
Communication functions, ensuring the reliability of battery pack performance and achieving remote real-time monitoring of battery data
Standard maintenance free design, suitable for installation in 19 inch communication cabinets
Wide temperature range and high reliability
Long lifespan, with battery pack cycling llife exceeding 3000 times
Low internal resistance of the battery, superior rate discharge performance
Multiple battery packs can be used in parallel, suitable for high-capacity applications
Parameters：
Items | Parameters | Remarks |
Rated Capacity | 100Ah | 25℃±3℃,0.2C constant current discharging,40.5V cut off |
Rated Voltage | 48V | |
Standard Charge Current | 20A（0.2C） | 0.2C CC（Constant current）charge to 54.0V，then CV（constant voltage）charge， cut off when charging current≤0.05C. |
Max Continuous Charge Current | 50A（0.5C） | Do not exceed 0.5C |
Max Charge Current | 100A（1C） | Requirement: 1 cycle/day |
Charge Cut Off Voltage | 54.0V | Equalized Charge Voltage：53.5V Floating Charge Voltage：51.0V |
Standard Discharge Current | 20A（0.2C） | 0.2C CC（Constant Current）discharge, cut off @40.5V. |
Max Continuous Discharge Current | 50A（0.5C） | Continuous 50Adischarge |
Max Discharge Current | 100A(1C) | Requirement: 1 cycle/day |
Discharge Cut Off Voltage | 40.5V | 2.7V/Cell, 40.5V / Pack. |
Max Pulse Discharge Current | 130A | 25℃±3℃,≤1s |
Working Temperature (charge) | 0℃~55℃ | 0℃-10℃：continuous 20A（max）charge 10℃-45℃: continuous 50A（max）charge 45℃-55℃：continuous 20A（max）charge |
Working Temperature (discharge) | -20℃~55℃ | Battery can work at specified temperature range with capacity loss in tolerance. |
Storage temperature | -20℃～ 45℃ | (short term) Within 1 month |
Storage temperature | 0℃～35℃ | (long term) Within 1 year |
Battery Weight | About 45Kg | |
Battery Impendence | ≤30mΩ | DC Internal Resistance |
Charge/Discharge Efficiency | ≥95% | Charge/discharge efficiency in Wh (round trip efficiency) at 0.2C charge and discharge current，25℃. |
Applications：
Outdoor marginal stations, distributed base stations, indoor macro base stations. Microcell base stations and other small capacity, end power supply stations, new energy stations.
