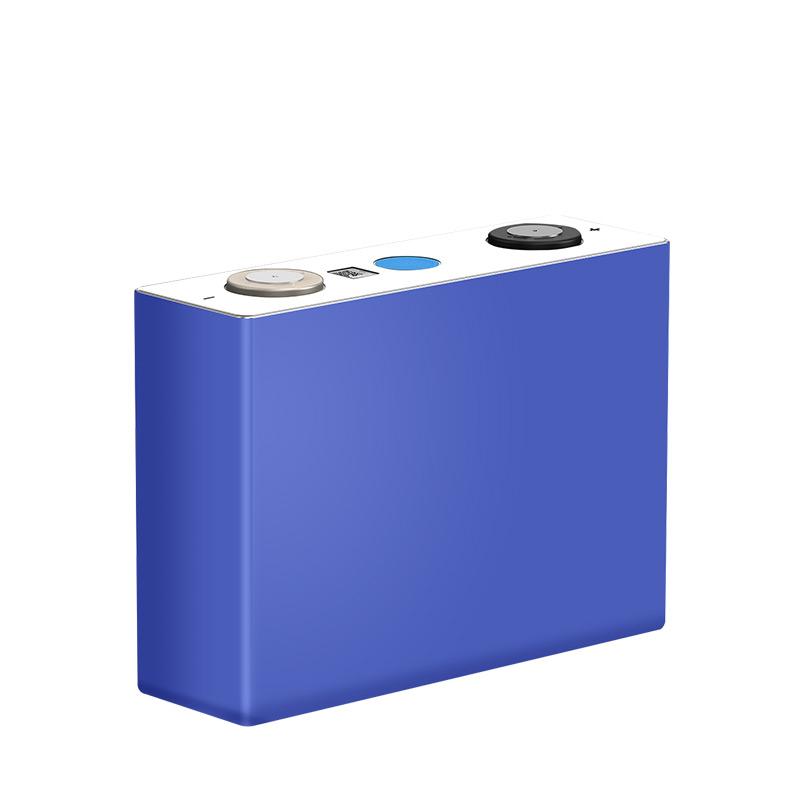

EVE LF100MA Features
Intelligent factory design, high-performance consistency.
Square aluminum shell structure, high precision explosion-proof valve, high safety performance.
Low internal resistance, high discharge rate, and stable discharge platform.
Long cycle life, capacity retention rate over 80% after 4000 cycles at 1C/1C.
Green environmental protection
Specification
Typical Capacity: 100Ah
Typical Voltage: 3.2V
AC Impedance Resistance(1KHz): ≤0.5mΩ
Standard Charge / discharge current: 0.5C/0.5COperating Voltage: 2.5V~3.65V
Maximum continuous charge/discharge current: 1C/1C
Maximum pulse charge/discharge current(30s): 2C/2C
Recommended scope of SOC: 10%～90%
Charging Temperature: 0℃～55℃
Discharging Temperature: -20℃～55℃
Dimension: 118.5*115.7*97.0mm
Battery weight: 1.92±0.1kg
Encapsulation mode: U-shaped capsule

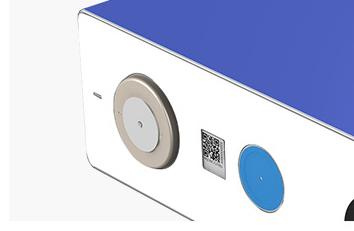

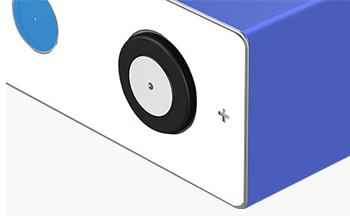

Two-dimensional graphs of Battery：
Attention
1. When the battery is charged and discharged, the conditions for monitoring and protecting the battery voltage, current and temperature shall be ensured.
2. Please keep the battery away from the heat source, fire source and other corrosive environments such as heating, strong acid and strong alkali.
3. Do not short circuit the battery or install it with incorrect polarity at any time，otherwise it can cause serious damage to the battery and cause danger.
4. Do not mix batteries of different models or manufacturers.
5. Do not use external force to make the battery fall, impact or puncture. Do not disassemble the battery or change the external structure.
6. When the battery is not used for a long time, please keep the battery in the state of 30%-50% SOC, and avoid the environment of strong direct sunlight or high temperature and humidity.
7. When operating the battery, it is necessary to wear rubber gloves and other protective devices.
8. In case of leakage, smoke or damage of battery, please stop using immediately and contact our company for handling.
