Product Details:
|
Nominal Capacity: | 2550mAh | Nominal Voltage: | 3.6V |
---|---|---|---|
Internal Impedence: | / | Operating Votage: | / |
Dimension: | Height:65.15±0.15mm Diameter:18.40±0.20mm | Battery Weight: | 48.0g Max |
18650 battery refers to a cylindrical battery with a diameter of 18mm and a length of 65mm.
Features:
High-energy density
High-safety
Fast charging
Long cycle life at room temperature
Excellent high temperature and low temperature cycle
Specification:
Item | Specification |
Model | ICR18650/26V |
Typical Discharge Capacity | 2500mAh Charge:0.75A,4.20V,CCCV50mA cut-off Discharge:1.25A,2.75VDC cut-off |
Typical Voltage | 3.60V |
Standard Charge | CCCV,0.75A,4.20±0.05V,50mA cut-off |
Rapid Charge | CCCV,1.25A,4.20±0.05V,50mA cut-off |
Standard Discharge | DC,1.25A,2.75V cut-off |
Max.Instantaneous Discharge | DC,7.5A,2.75V cut-off |
Charge/Discharge Voltage Range | 4.20~2.75V |
Cell Weight | 48.0g Max |

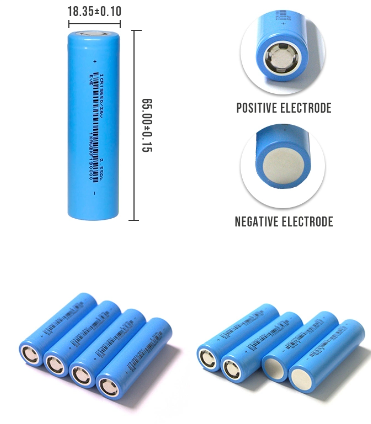

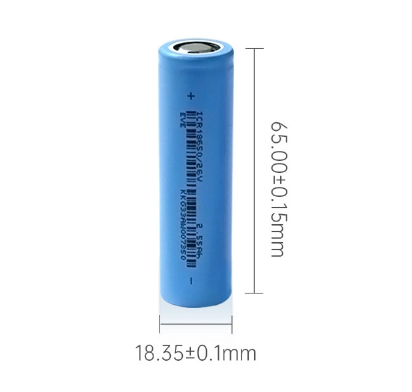

Cell Dimension | Height:65.15±0.15mm Diameter:18.40±0.20mm |
OperationTemperature (SurfaceTemperature) | Charge:0 - 45°C Discharge:-20 - 60°C |
Details:
18650 2.4V 1300mah LTO lithium titanate cylindrical battery cell
