Product Details:
|
| Nominal Capacity: | 10 Ah | Nominal Voltage: | 2.4V |
|---|---|---|---|
| Internal Impedence: | ≤0.8mΩ | Operating Votage: | 1.5V-2.8V |

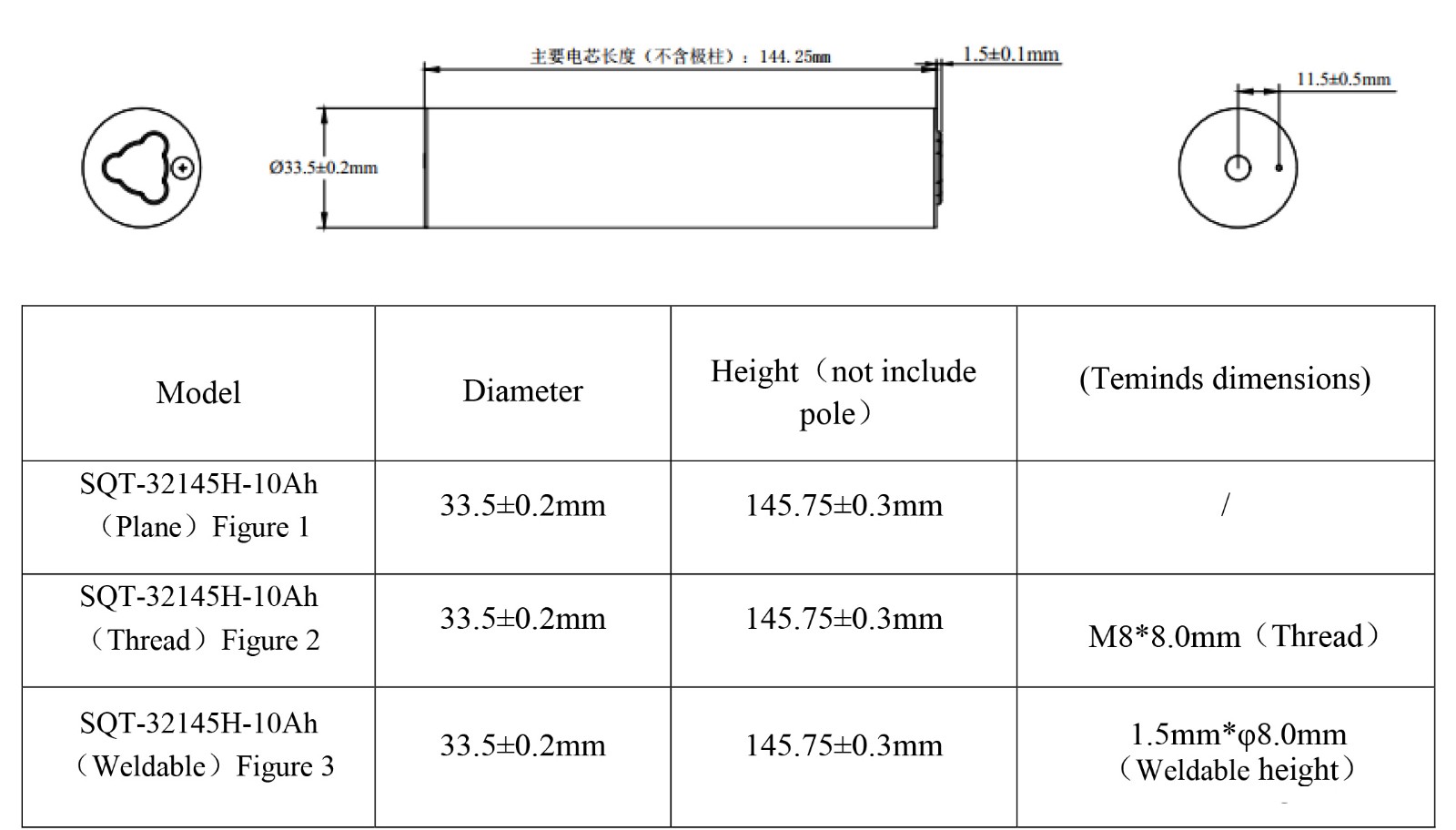

| Dimension: | 33.5*145.75mm | Battery Weight: | 285.0g±10g |

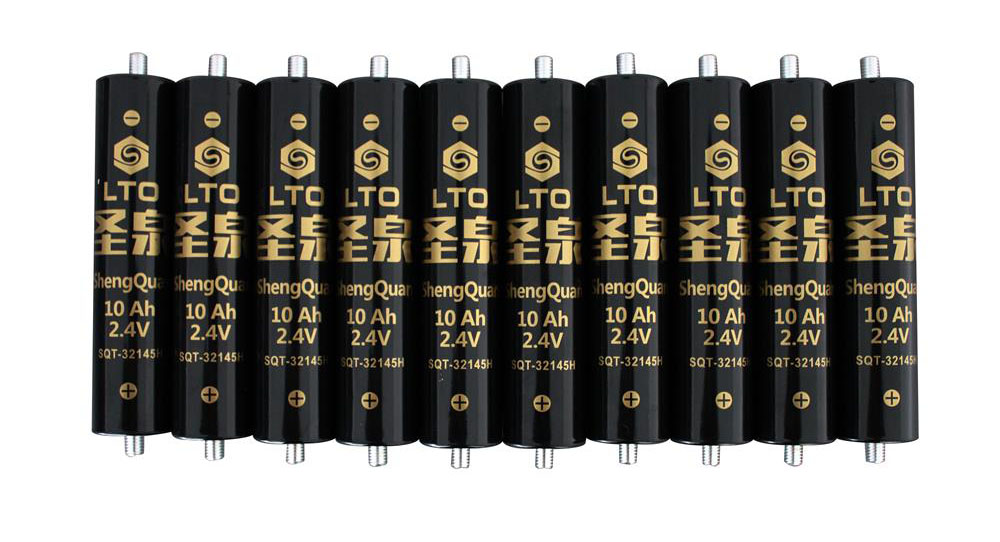

The Lithium titanate LTO battery is the
safest lithium battery at present. It will not catch fire or explosion under
collision, over the charged or short circuit; The 2.4V 10Ah to battery cell has
a max pulse charge and discharge current of 10C rate and continuous charge of
4C, discharge of 6C. It also has a wide operating temperature range from -40℃ to
60℃ and can be widely used in high and cold areas, alpine regions, refrigeration
storage, etc.
Product Advantages
High safety: no combustion, no
explosion
High rate: fast charge and discharge
20C
Long woking life: more than 30000 cycles
Wide
working temperature range: -40~60 degree centigrade
Parameters
Item | Parameters |
Nominal Capacity | 10Ah |
Nominal Voltage | 2.4V |
Internal Impedance | ≤0.8mΩ |
Standard Charge Cut-off Voltage | 2.8V |
Standard Discharge Cut-off Voltage | 1.5V |
Maximum Continuous Charge Current | 4C (40A) |
Maximum Continuous Discharge Current | 6C (60A) |
Maximum Pulse Charge/Discharge Current(10s) | 20C (200A) |
Operating Temperature Range | -40~60℃ |
Operating Humidity Range | Humidity: ≤85%RH |
Storage Temperature Range | -5℃~28℃ |
Weight | 285.0g±10g |
Dimension | 33.5*145.75mm |
Cycle Life | 20000times @80%DOD |
