Product Details:
|
| Nominal Capacity: | 6000mah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | 8mΩ | Operating Votage: | 2.0~3.65V |
| Dimension: | 32.2*70.5mm | Battery Weight: | 140± 5 g |
Model: LiFePO4-32700- 6.0Ah
Nominal Voltage: 3.2V
Nominal Capacity: 6ah
AC
Impendance: 8mΩ
Dimension: 32.2*70.5±0.3mm
Weight: 140±5g
Cycle
Life: ≥2000 cycles(100% DOD)

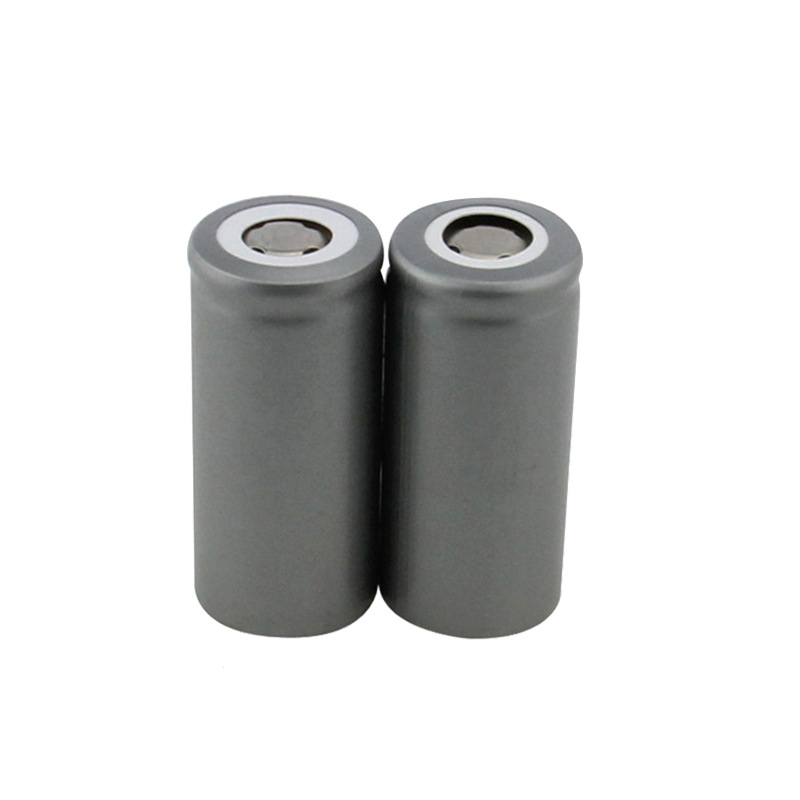

32700 Cylindrical Rechargeable Lithium-ion LiFePO4 Battery Cell, is the updated version of optimumNano 35650 battery cell, can replace LiFePO4 32650 with the same size but higher capacity
Sturdy and pressure resistant steel
envelope
High capacity
Excellent cycle life
Excellent high and low temperature performance
Steady output voltage
Low self-discharge
Double safety protection
With outstanding high level of vibrations and
shocks
Electric two-wheeled vehicle, three-wheeled
vehicle, four-wheeled low-speed vehicle, UPS, Energy storage.
Individual cells should be integrated in specific battery pack according to the demands.The battery pack together with electronic system provides performance, thermal and safety management.
Item | Condition/ Note | Specification |
Nominal Capacity | 1C discharge capacity | 6.0Ah |
Nominal Voltage | 3.2V | |
AC Impedance | At AC 1000 Hz | 8mΩ |

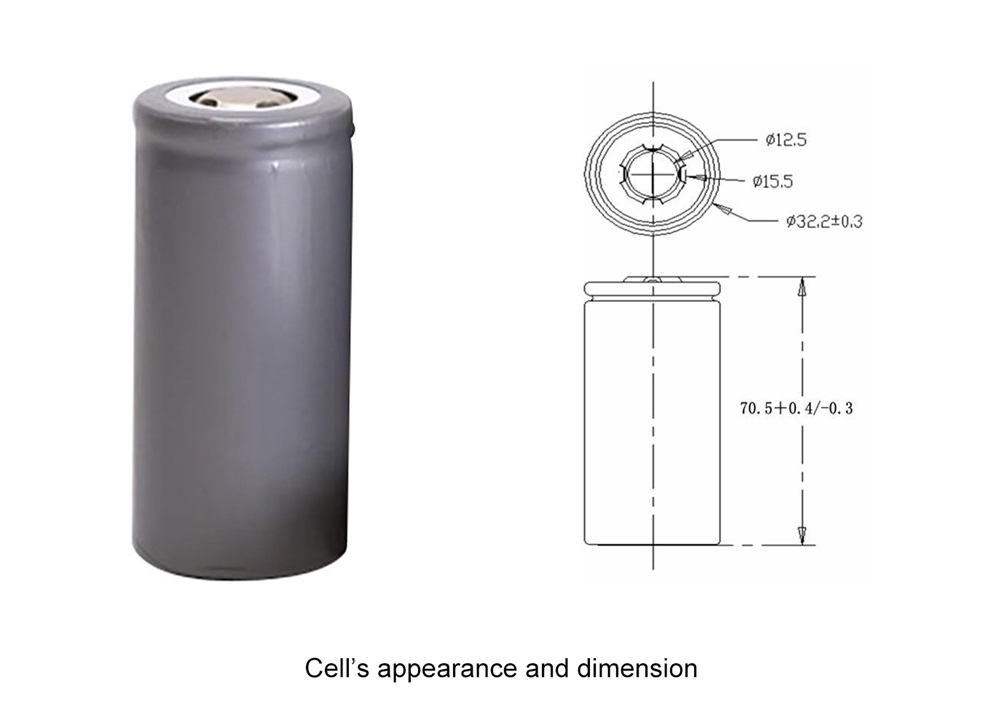

Cell Size | Cell Diameter | 32.2±0.3 mm |
Cell Height | 70.5+0.4/-0.3 mm | |
Cell Weight | 140± 5 g | |
End-of-charge Voltage | CC Mode | 3.65V |
End-of-charge Current | CV Mode | 0.3A |
Charging Method | Standard Charging | ≤1C at CC/CV |
End-of-discharge Voltage | CC Mode | 2.0V |
Max continuous Discharging Current | 18A(3C) | |
Max Pulse Discharging Current | 60A(10C), 3s | |
Cycle Life | 1 C/100 % DOD | ≥2000 cycles |
Operating Temperature Range | Charging Temperature | 0~60 °C |
Discharging Temperature | -20~ 60°C | |
Storage Temperature | -20~ 45°C |
