Product Details:
|
| Nominal Capacity: | 58Ah | Nominal Voltage: | 3.7V |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | / |
| Dimension: | 926±20g | Battery Weight: | 148.24±0.15(W)*26.66±0.15(T)*105.9±0.2mm |

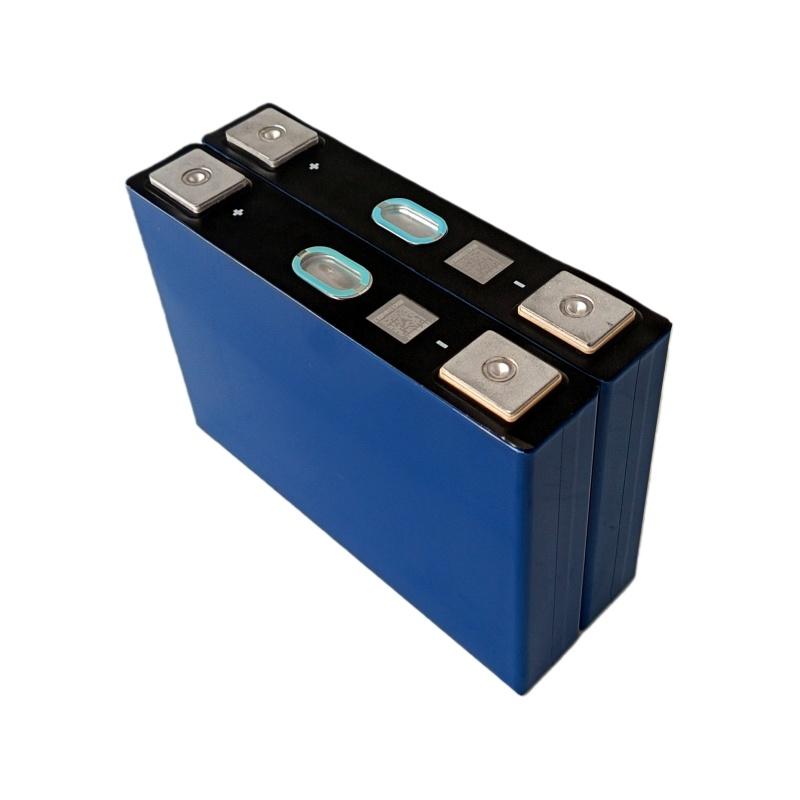

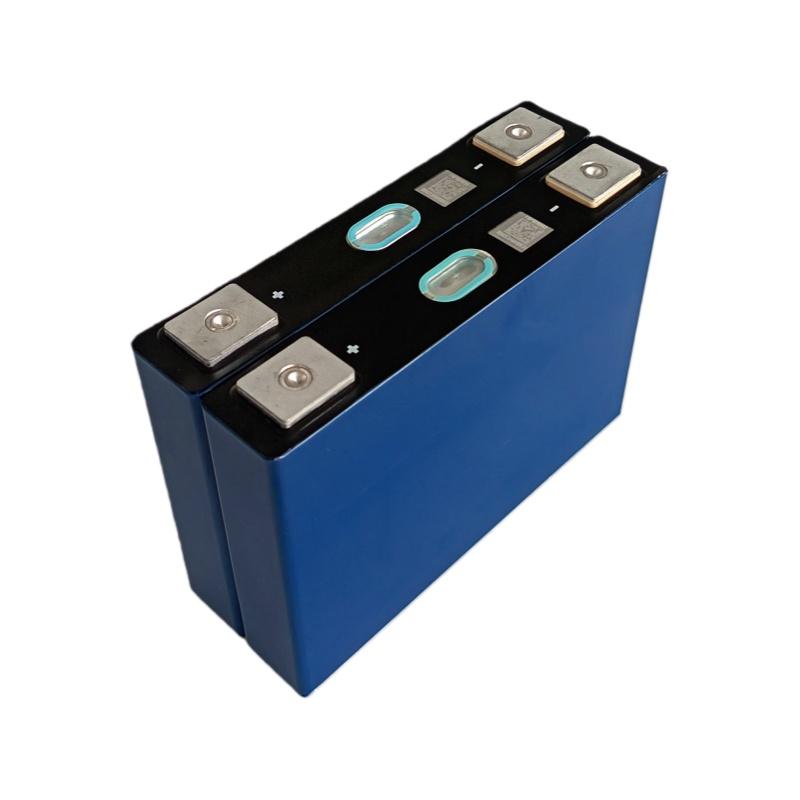

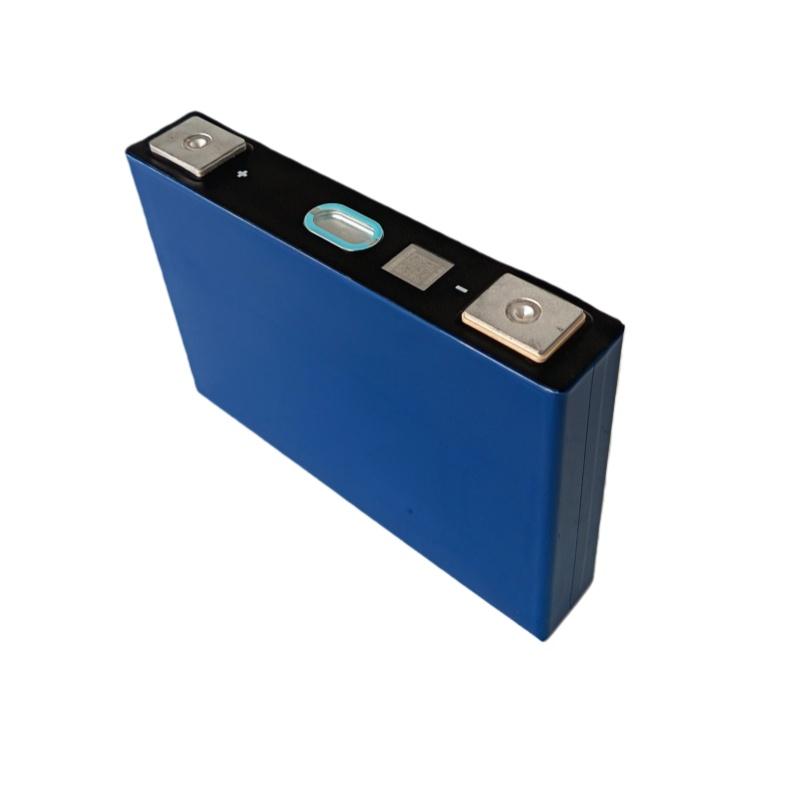

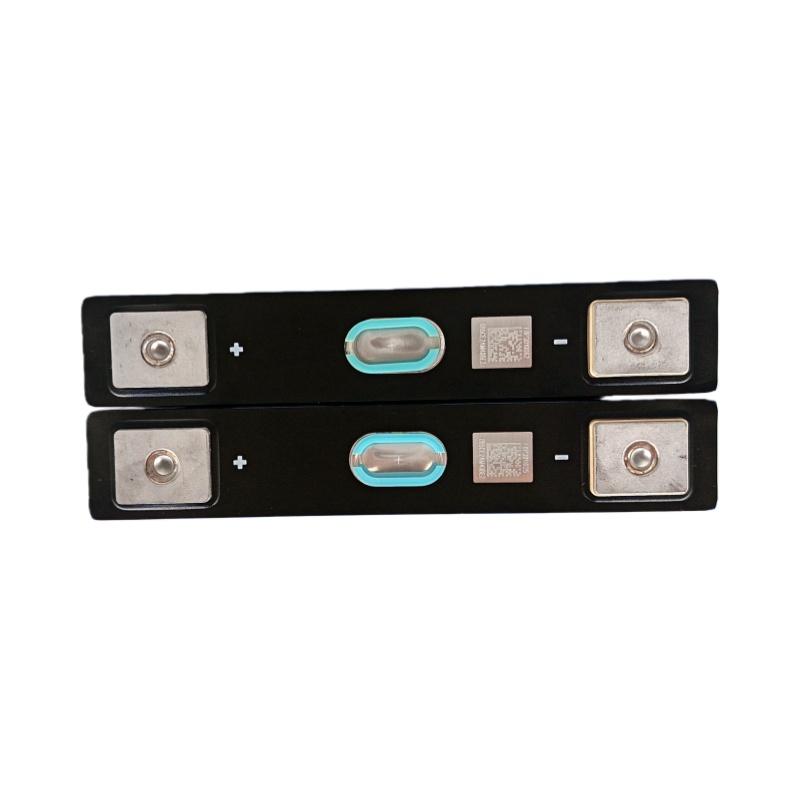

CALB 3.7V 58Ah Lithium nickel manganese cobalt oxide battery (NMC 811) Ternary Prismatic Cell, CE, UL, MSDS, and UN38.3 have been approved. (L148N58A)3.7V 58Ah NMC battery cells were already passed all safety tests(overcharge, over-discharge, over-temperature, short circuit, drop, crush, needle puncture tests, etc.).
Item | Parameters |
Nominal Capacity | 58Ah @1C |
Minimal Capacity | A58h @1C |
Work Voltage | 2.75-4.35V (T≥0℃) 2.2-4.35V (-30℃≤T＜0℃) |
Internal Resistance | 0.60~0.80mΩ |
Charging Time | ~4h |
Recommended SOC Window | SOC：5%~97% |
Operating Temperature | Charging Temperature: -20~55°C Discharging Temperature: -30~55°C |
Weight | 926±20g |
Shell Material | Aluminium alloy |
Cycle Life | ≥2000 cycles |
Dimension | 148.24±0.15(W)*26.66±0.15(T)*105.9±0.2mm |
3.7V 177Ah NMC NCM Lithium Li Ion Prismatic Battery Cell Grade A
