A customer from the United Arab Emirates wants to customize a set of 24V 100Ah lifepo4 battery packs for his customers.

Among eve batteries and winston batteries, since the battery application area is in Iraq, the battery needs to have good high temperature resistance, so the customer finally decided to order the winston battery.

The Thunder Sky Winston battery is a high-power lifepo4 battery. As the only LFP producer, Winston incorporate Yttrium to enhance the cell temperature flexibility as well as performance overall. Minimal lifetime of 2000 cycles with real experience showing up to 8000 cycles.

The customer made requirements for the size and power rate of the battery pack and provided us with a design drawing of the lifepo4 battery pack they wanted.

This is the customer's request for Winston's custom lifepo4 battery pack:

1. Aluminum battery pack casing that fits the size

2. 8S Winston battery TSWB-LYP100AHA-B

3. The battery pack charges at 0.25C and discharges at a maximum of 10A.

4. USB cable with Bluetooth and RS485 communication

5. At least 70cm long positive and negative leads (25mm size)

6.The positif and negatif wires must be terminated with M8 round lug with red and black heat shrink tubing

7. Battery pack casing with foldable handle (aluminum or 316 stainless steel) and removable cover

8. Battery pack installation with Daly BMS 8S 24V 100A and 1A active balancer

9. Install a soldered ground terminal on the battery pack housing

10. The battery pack casing needs to have the logo of the customer company

11. Equipped with a 20A charger

We purchase 8pcs 100ah winston batteries from Winston manufacturer, and then send the batteries to the pack factory for professional design and assembly.

Our technicians finally designed a plan based on the battery pack design drawings provided by the customer, and the battery pack plan was quickly approved by the customer.

During the process of assembling the battery pack, we communicated and confirmed with the customer every step of the way. Although there were some imperfections along the way, they were successfully resolved.

In accordance with the agreement with the customer, we finally successfully completed the winston customized battery pack.

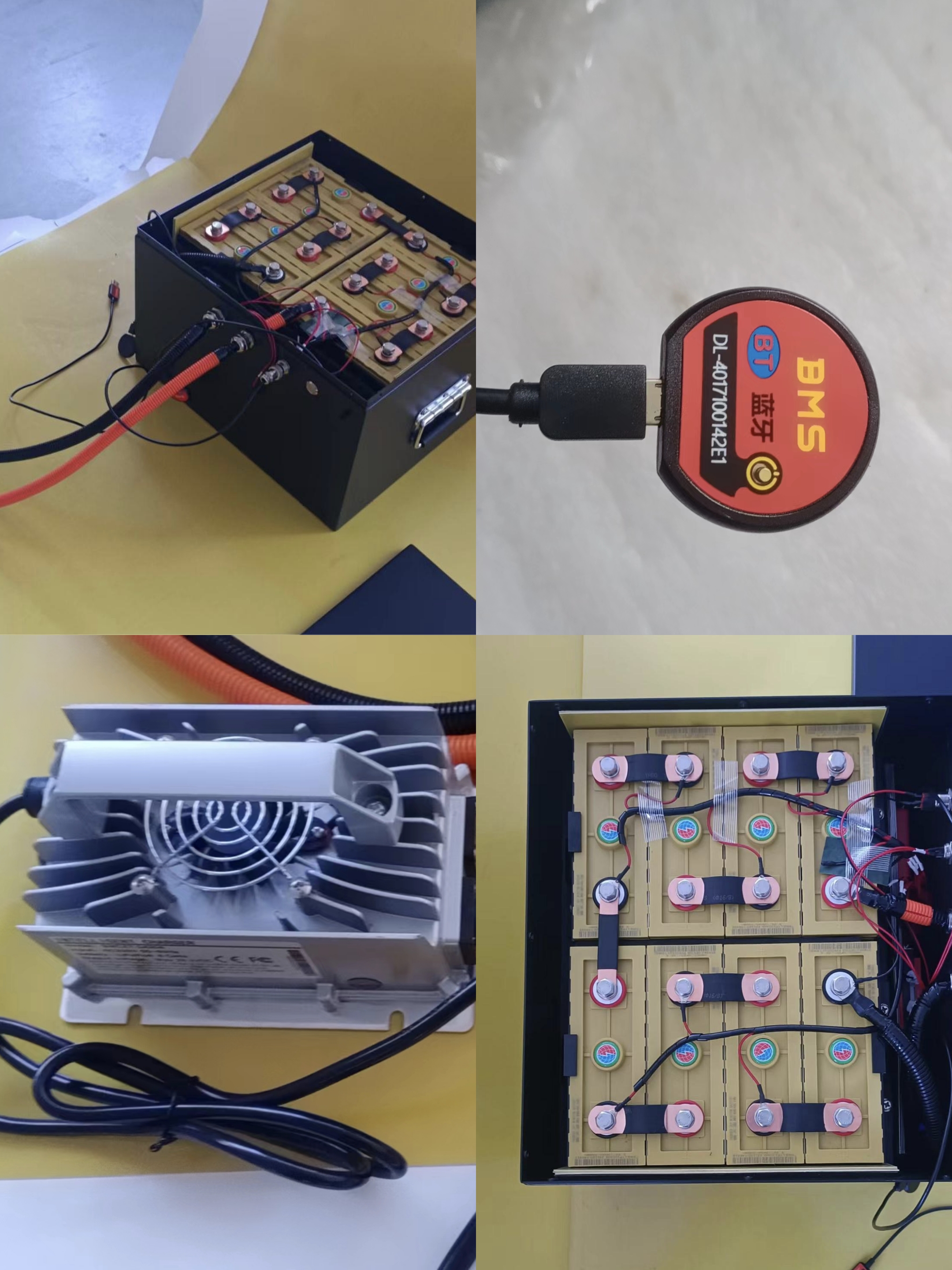

This is a picture of the winston battery pack.

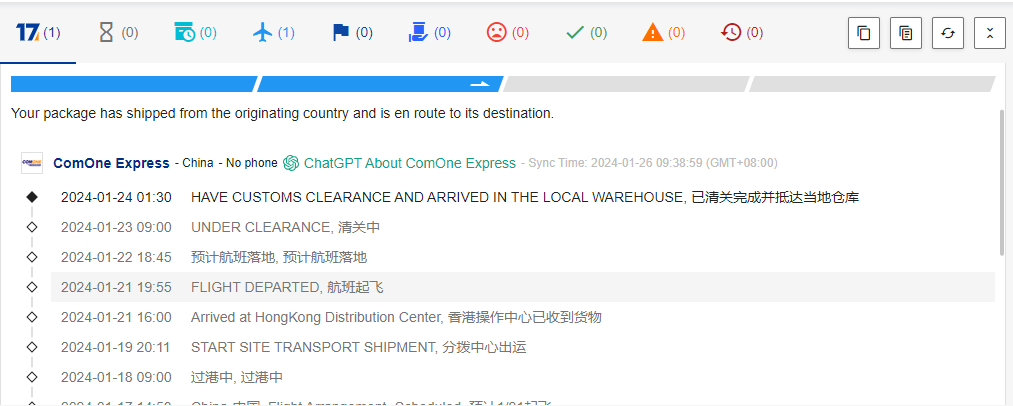

This is the tracking information for the battery pack.
