Lithium Iron Phosphate battery (LiFePO4 Battery) is a type of lithium-ion battery that has gained popularity due to their high energy density, long cycle life, and enhanced safety features. When evaluating the performance of LiFePO4 battery cells, several basic technical indicators and parameters are important to consider:

1. Voltage: LiFePO4 batteries typically have a nominal voltage of 3.2 to 3.3 volts per cell. This voltage remains relatively constant throughout most of the discharge cycle, which is different from some other lithium-ion chemistries that have a voltage curve that varies more significantly.

2. Capacity: Capacity is measured in ampere-hours (Ah) or milliampere-hours (mAh) and represents the amount of charge a battery can store. Common capacities for LiFePO4 cells range from a few hundred mAh to several Ah.

3. Cycle Life: LiFePO4 batteries are known for their long cycle life, often exceeding 2000 charge-discharge cycles. This makes them a preferred choice for applications requiring frequent cycling.

4. Energy Density: LiFePO4 batteries have a lower energy density compared to some other lithium-ion chemistries like NMC (Nickel Manganese Cobalt Oxide) or LCO (Lithium Cobalt Oxide). However, they compensate for this with better safety, longer life, and superior thermal stability.

5. Self-Discharge Rate: LiFePO4 cells have a low self-discharge rate, meaning they can retain their charge for extended periods without significant loss. This can be an important feature for applications like backup power systems.

6. Operating Temperature Range: The operating temperature range of LiFePO4 batteries typically falls between -20°C (-4°F) and 60°C (140°F), although some cells can handle wider temperature variations.

7. Charge and Discharge Rates: LiFePO4 batteries can typically handle high charge and discharge rates, making them suitable for applications that require rapid power delivery, such as electric vehicles.

8. Voltage Discharge Curve: LiFePO4 batteries have a flat discharge curve, which means the voltage remains relatively constant until near the end of the discharge cycle. This allows for better predictability of the available energy.

9. Safety: LiFePO4 batteries are known for their safety. They are less prone to thermal runaway and have a higher tolerance for overcharging and over-discharging compared to some other lithium-ion chemistries.

10. Weight: LiFePO4 batteries are relatively heavy compared to other lithium-ion chemistries due to their lower energy density. This is an important consideration in weight-sensitive applications.

11. Cost: While LiFePO4 batteries tend to be more expensive upfront compared to some other lithium-ion chemistries, their longer cycle life and safety features can make them cost-effective in the long run, especially for applications where safety and longevity are critical.

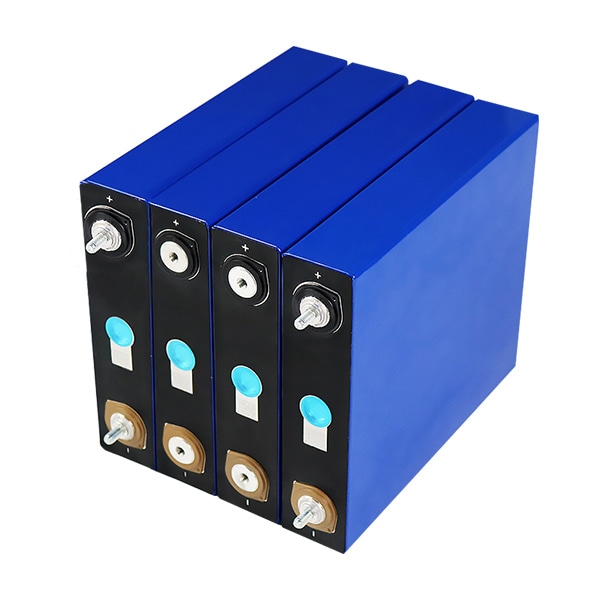

12. Form Factor: LiFePO4 cells come in various shapes and sizes, making them adaptable to different applications. Common form factors include cylindrical, prismatic, and pouch cells.

When selecting lifepo4 battery for a specific application, it's essential to consider these technical indicators in the context of your requirements and constraints to ensure that you choose the right battery for your needs. Additionally, consulting with battery manufacturers and reviewing their product specifications is crucial for making an informed decision.If you have any needs, feel free to contact us at any time.
