Daly Smart BMS(Battery Management System)


Daly BMS covers lithium battery like lifepo4 battery, LTO BatteryNCM Battery protection management system with battery assembly in series 3-35 series and working current less than 400A.  The first products, water proof small red board and high current board, are widely used in various power lithium-ion power systems such as electirc bicycles.  sightseeing browsers, golf carts, low-speed tram batteries and so on.  Thet also serve various other industries around the world, such as: wind and solar energy storage system, household energy storage system, UPS backup power supply, automobile startup power supply, communication base station power supply, etc.  Mine emergency equipment, solar street lamp and other fiedls.



Six protection Funtion of BMS


01. Charging Protection

Seiko IC effectively controls MOS to prevent battery overcharge and battery explosion


02. Discharge Protection

Prevent battery power from dying and affect the life of lithium batteries.


03. Over Current Protection

Prevent the battery from being damaged by excessive instantaneous current.


04. Short Circuit Protection

Automatic protection during abnormal short circuit to prevent battery.


05. Temperature Protection

The NTC temperature control probe is added to prevent the damage caused by the sponta-neous combustion of the battery when the temperature is too high.


06. Drop Protection

When the cable is off, then the BMS has no output.



Hardware Product Catalogue

LiFePO4 BMS, NMC BMS, Lead-acid BMS

Standard Voltage

Model

BMS Current

12V

Li-ion 3S 12V BMS

10A~500A option

Li-ion 4S 12V BMS

10A~500A option

LiFePO4 4S 12V BMS

10A~500A option

LTO 5S 12V BMS

10A~500A option

24V

Li-ion 6S 24V BMS

15A~500A option

Li-ion 7S 24V BMS

15A~500A option

LiFePO4 8S 24V BMS

15A~500A option

LTO 10S 24V BMS

15A~500A option

36V

Li-ion 10S 36V BMS

15A~500A option

LiFePO4 12S 36V BMS

15A~500A option

LTO 15S 24V BMS

15A~500A option

48V

Li-ion 13S 48V BMS

15A~500A option

Li-ion 14S 48V BMS

15A~500A option

LiFePO4 15S 48V BMS

20A~500A option

LTO 20S 48V BMS

20A~500A option

60V

Li-ion 16S 60V BMS

20A~500A option

Li-ion 17S 60V BMS

30A~500A option

LiFePO4 20S 60V BMS

30A~500A option

LTO 25S 60V BMS

30A~500A option

72V

Li-ion 20S 72V BMS

30A~500A option

Li-ion 21S 72V BMS

30A~500A option

LiFePO4 24S 72V BMS

30A~500A option

LTO 30S 72V BMS

30A~500A option

84V

Li-ion  24S 84V BMS

30A~500A option

86V

LiFePO4 27S 86V BMS

60A~500A option

100V

Li-ion 27S 100V BMS

60A~500A option

LiFePO4 32S 100V BMS

60A~500A option

120V

Li-ion 32S 120V BMS

60A~500A option

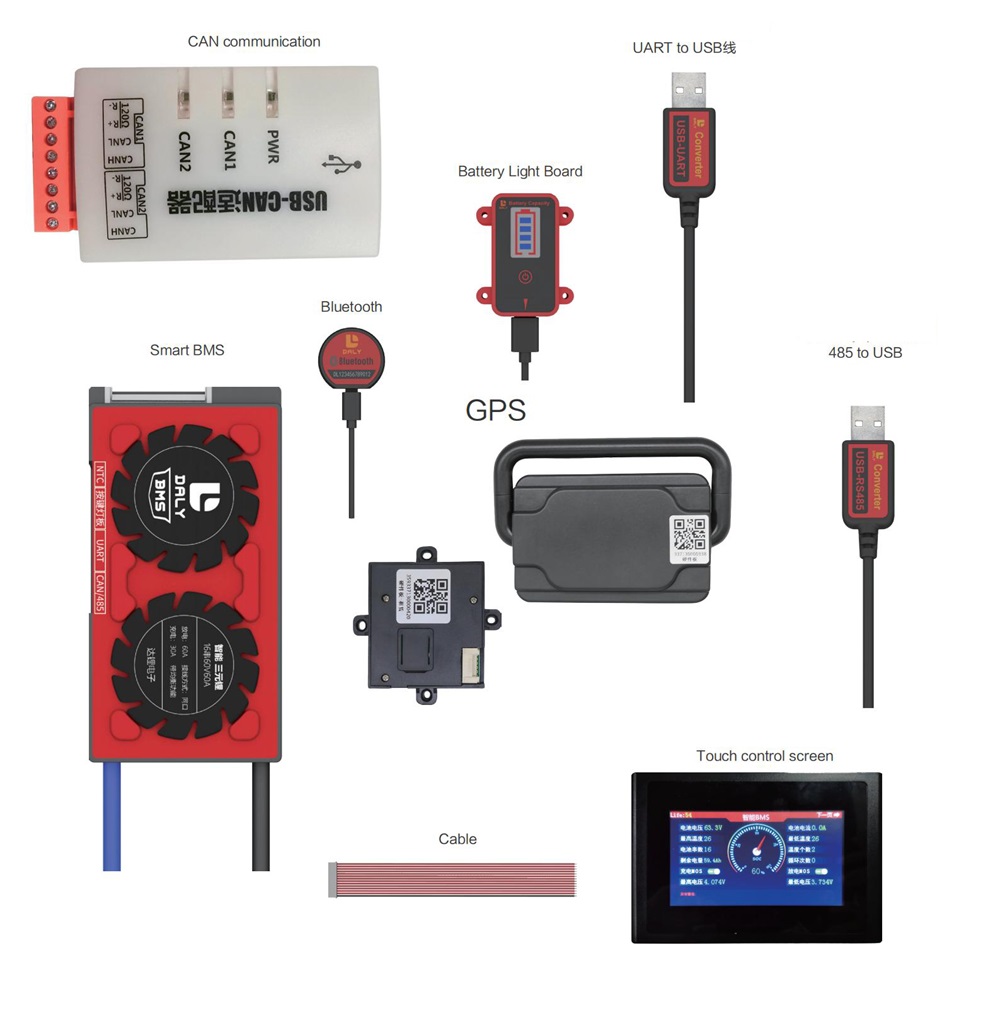

Remark: We also provide the Smart BMS that option for UART, R485, Blue-tooth, CAN, GPS communication futions

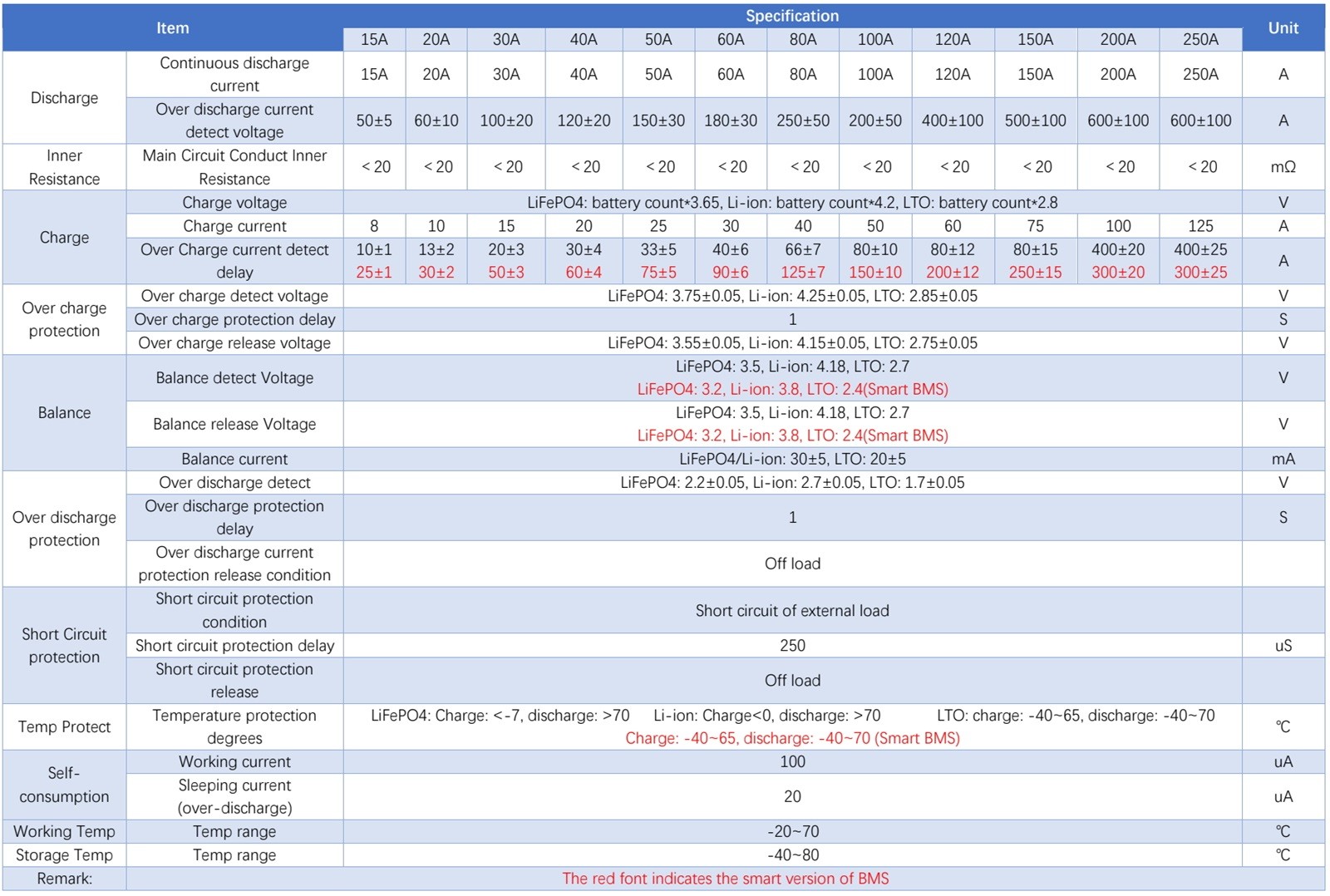

Specification of Lithium Battery BMS


Li-ion Low Current Series(3S-20S)


LiFePO4 Low Current Series(4S~20S)


High Current Series(80A~500A)


Smart BMS(30A~500A)

Smart Software BMS for Shared Power swiching and internet of things solutions



You can order directly from our online shop here:


Aliexpress: Click here to buy



Applications:

Applied to Electric scooters, bicyles, motor cycles and Tricycles



Suitable for low-speed four-wheelers, solar energy storage.
