Recently we shipped 30 units 12V 60Ah lifepo4 battery packs to our German customers.
This is a project for For traffic enforcement.
According to the client’s description of the required battery pack, we provided him with a customize solution.

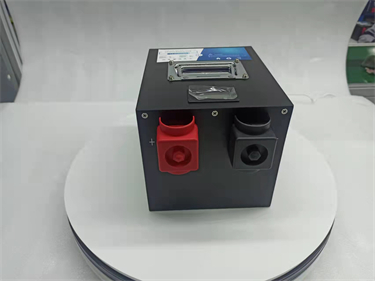

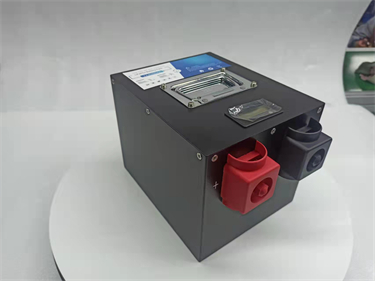

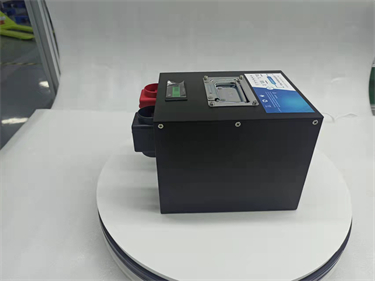

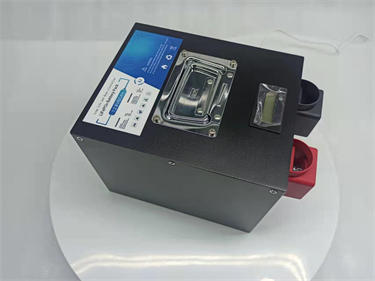

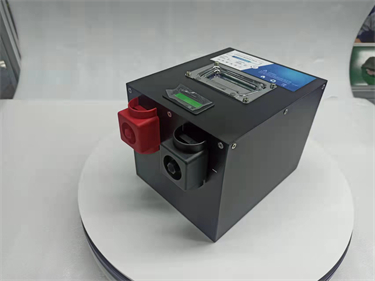

We designed the 12.8V 60Ah battery with the following technical data:
Item | Parameters |
Typical capacity | 60 Ah |
Nominal voltage | 12.8V |
Typical Energy | 768 Wh |
Shipping capacity | 18±1Ah |
Discharge termination current | 10V |
Maximum discharge current | 20A |
Charging voltage | 14.4V |
Recommended charging current | 10A |
Maximum charging current | 20A |
Operating temperature (charging) | 0~60°C |
Operating temperature (discharge) | -20~60°C |
Weight | 8±0.50Kg |
Typical dimension（W*H*T） | 220*180*170mm |
Cycle performance | ≥4000Cycles |
With BMS | Yes |
With LCD display | Yes |
Regarding the shipping, the 30 units batteries were packed in 15 cartons with total gross weight of 288kgs.
The cargo will be shipped by sea with door too door service.
